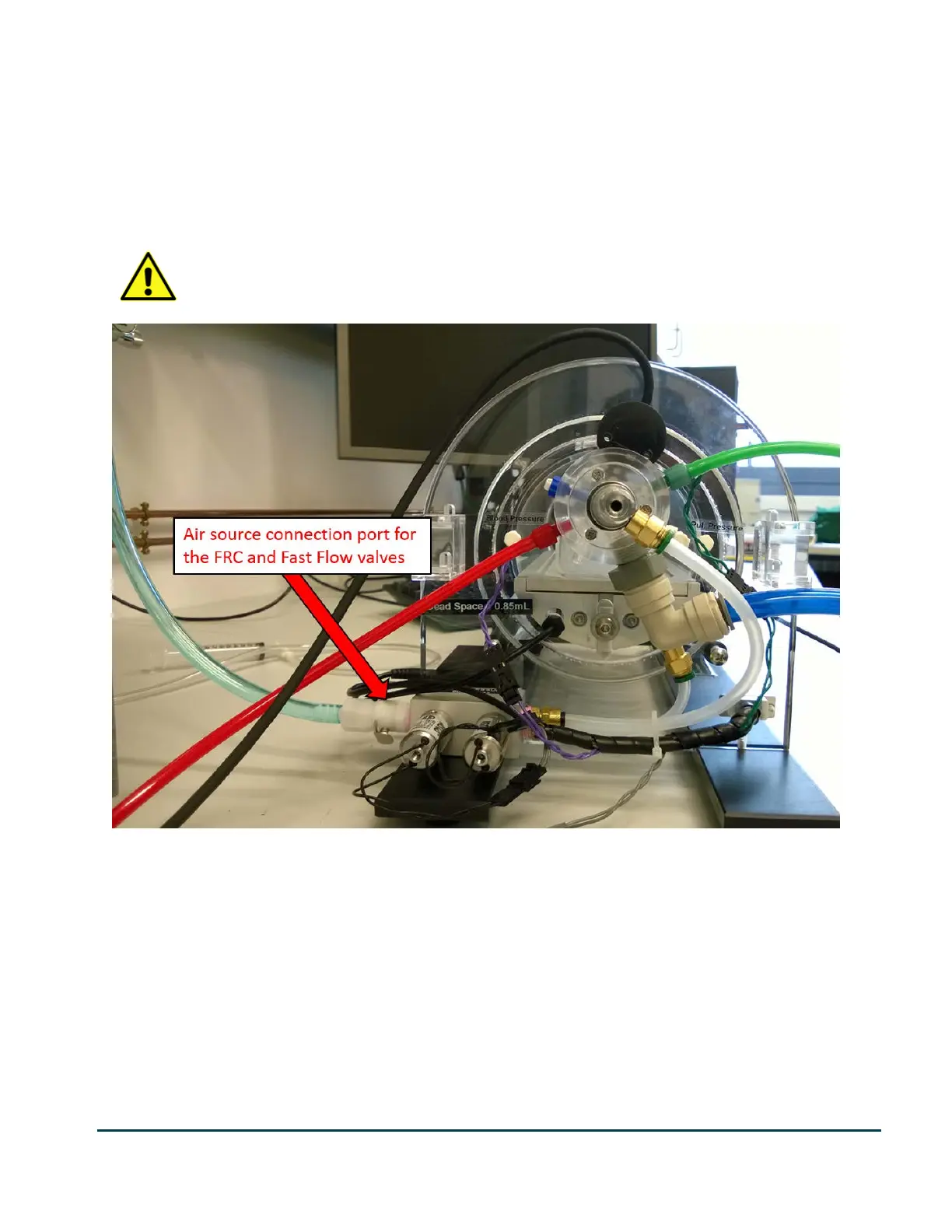

3 - Compressed Air Source Connection
If you are using any chamber type other than the mouse chamber you must connect a compressed air source that
delivers 40 PSI to 50 PSI of pressure to the
pneumatic control valves on the manifold. If the pressure is higher than
60 PSI, the pneumatic valves will be damaged. Possible air sources include low noise air compressors with a
pressure regulator, or a laboratory air source with a pressure regulator. Please see the Compressed Air Source
section on page 21 of this manual for more details.
Note: The pressure delivered to the air source connection port must not exceed 60 PSI or the
pneumatic valves will be damaged!!!
