Page 46
Pulmonary Function Test • Publication 014181-001 Rev 02 • www.datasci.com ©2023 Data Sciences International
When you hit Next, the FinePointe software checks the waveform to determine if you have followed the
instructions.

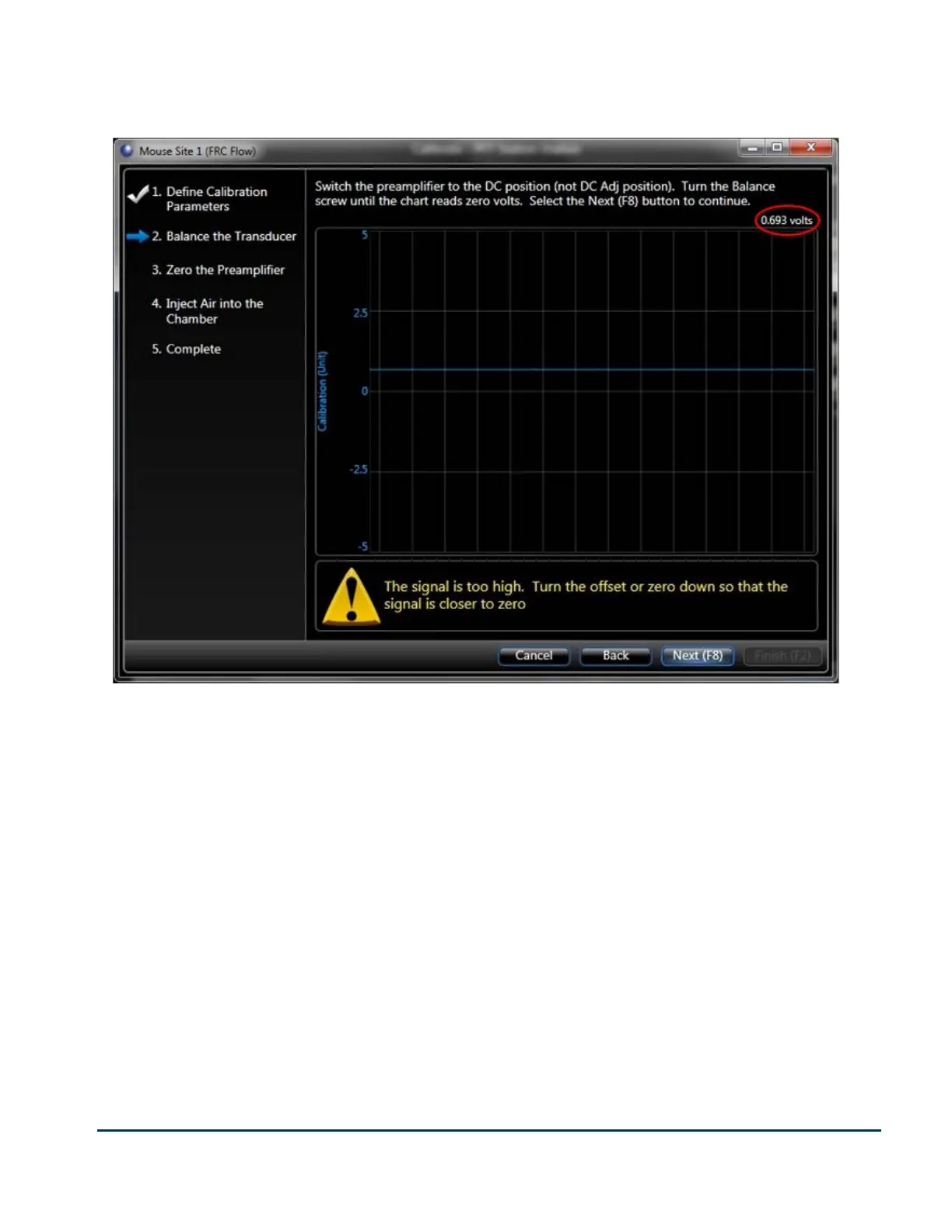

Any warnings are indicated below the chart as shown in the following screenshot. In this example, the instructions
say you must turn the Balance screw until the voltage is at zero. FinePointe checked and the signal is too high (it is
0.693V). Click Next.
