The teach-in procedure is allowed only at a
vehicle speed between 49 Km/h (30 mph) and 51 Km/
h (32 mph) in the 2nd gear.

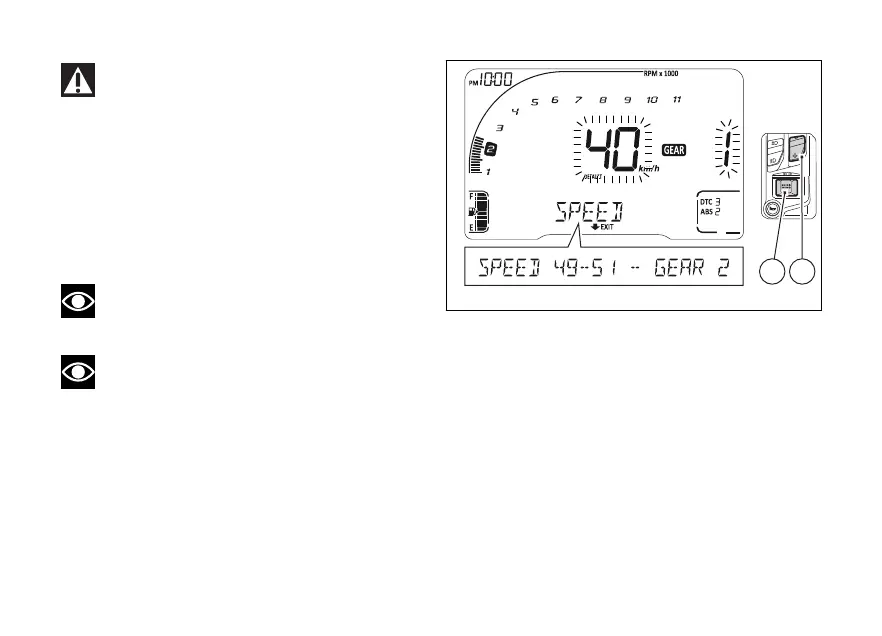

The instrument panel displays the rolling text
“SPEED 49-51 – GEAR 2”, while speed and gear
indicators are displayed in flashing mode until the 2
parameters comply with the indicated range.
Calibration is by keeping speed and gear
within the indicated range for 5 seconds.
Note
During calibration, the procedure can be
by pressing (2) for 2 seconds.
Note
During the calibration procedure, if the vehicle
speed exceeds 62 mph (100 km/h), the procedure will
stop.
If the teach-in procedure is completed correctly, the
instrument panel shows “ENDED” steady on,
followed by the previous screen a few seconds.
If the calibration procedure is by the user,
the instrument panel shows “ABORT” followed by
the previous screen a few seconds.
If, on the other hand, an error or malfunction occurs
during the calibration procedure, the instrument
panel shows “FAILED” followed by the previous
screen a few seconds.
Fig 157
205
