Adjusting the rear shock absorber
The rear shock absorber has external controls that
enable you to adjust the in order to suit the
load on the motorcycle.
The adjuster (1), located on the lower mount which
fastens the shock absorber to the swinging arm,
adjusts the damping during the rebound phase
(return).
The knob (2), located on the side of the
motorcycle, adjusts the preload of the shock
absorber external spring.
The adjuster (3), located on the expansion reservoir
of the shock absorber, adjusts the damping during
the compression phase.
Reach adjuster (3) by removing the seat (see chapter
“Seat lock”) and by the cover (4).

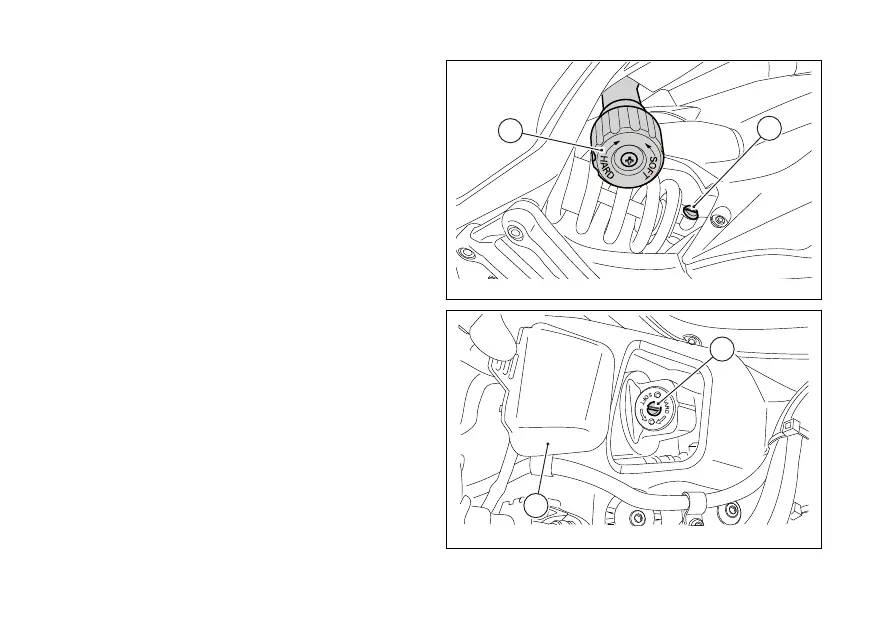

Fig 67
Fig 68
