Aligning the headlight
Note
Headlight features two adjusters, one for the
RH beam and one for the LH beam.
Check correct headlight aiming. Position the
motorcycle 10 metres (32.8 foot) from a wall or a
screen, the motorcycle must be upright
with the Tyres inflated to the correct pressure and
with a rider seated, perpendicular to the
longitudinal axis. On the wall or draw a
horizontal line at the same height from the ground
as the centre of the headlight and a line
aligned with the longitudinal axis of the motorcycle.
If possible, this check in dim light. Switch on
the low beam and adjust right and beams. The
height of the upper limit between the dark area and
the lit area must not be more than 9/10 of the height
from the ground of the headlight centre.
Note
This is the procedure specified by Italian
regulations for checking the maximum height of the
light beam. Please adapt said procedure to the
provisions in force in your own country.

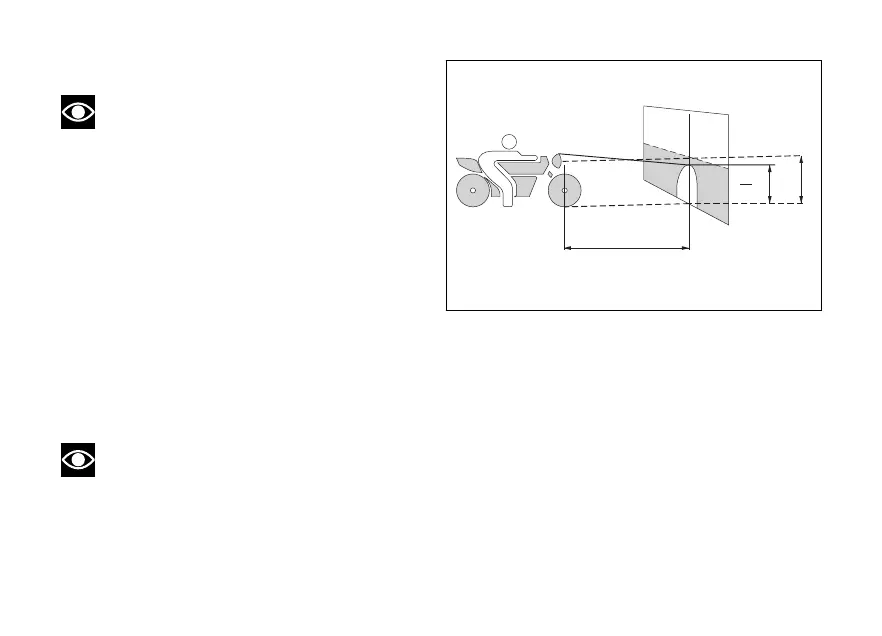

Fig 189
237
