Procedure for adjusting low beam/high beam
along the axis
1) Switch low beam on.
2) Fully cover one of the two low beams (right or
3) Adjust uncovered beam by working the
corresponding adjuster screw (2), i.e., the one on
the same side. Turn screw (2) clockwise to move
beam down, or counter clockwise to move beam
up.
4) Cover the already-set beam and uncover the
other one, then repeat step 3.
5) Turn on the high beam and adjust by working
adjuster screw (1). Turn screw (1) clockwise to
move high beam down, or counter clockwise to
move beam up.
The headlight might fog up if the motorcycle is
used under the rain or washing. Switch
headlight on for a time to dry up any
condensate.

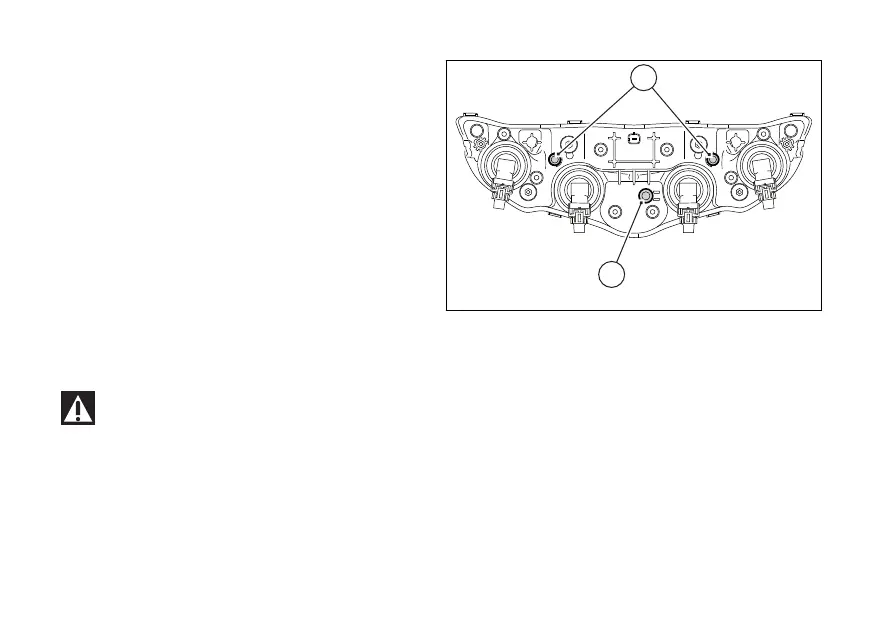

Fig 190
