The 30A main fuse (C) is located under the
rider seat, on the right-hand side. Remove the
protection cap to reach it.
The spare 30A fuses (D) are located on the solenoid
remove the protection cap to reach them.
A blown fuse can be identified by breakage of the
inner filament (F).
Switch the ignition key to OFF before replacing
the fuse to avoid possible
Never use a fuse with a rating other than
specified. Failure to observe this rule may damage
the electric system or even cause fire.

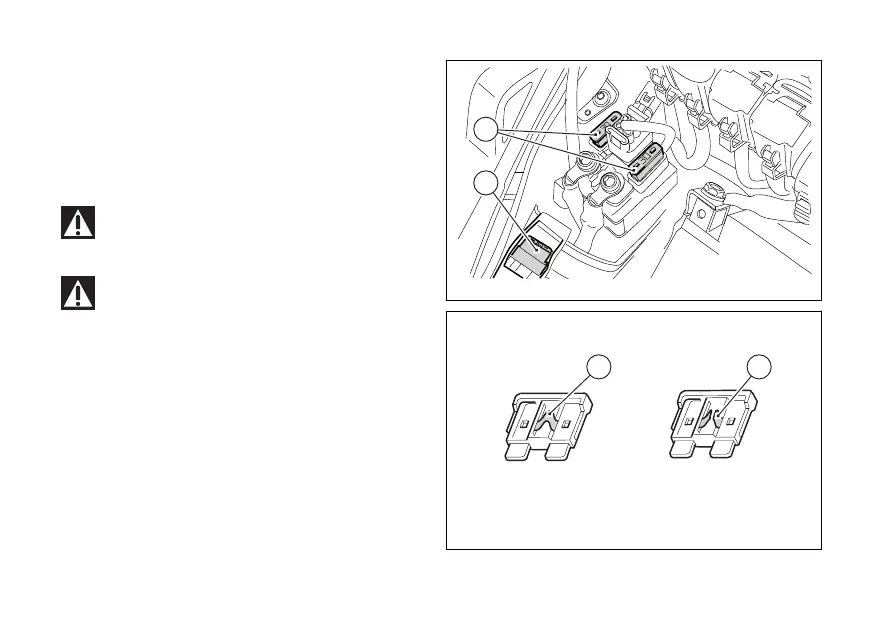

Fig 202
Fig 203
