9

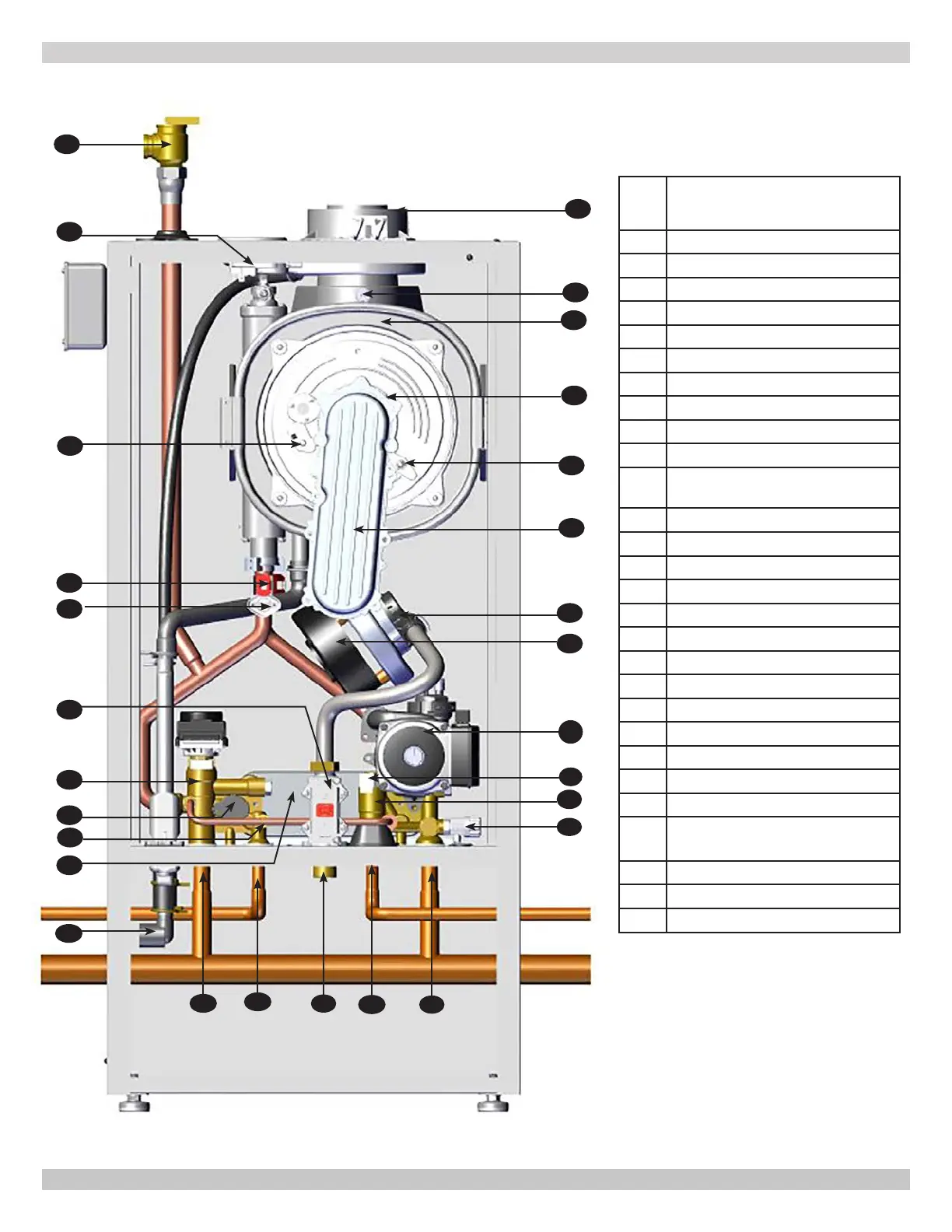

3 - COMPONENT LISTING
ITEM
NO.
Dunkirk
DCCF-150
1 Coaxial Connector
2 Flue Sensor
3 Heat Exchanger
4 Burner (not shown)
5 Flame Detection Electrode
6 Air/Gas Blend Manifold
7 Venturi
8 Fan
9 Pump with Air Separator
10 DHW Priority Sensor
11
Flow Sensor with Water Filter
and Flow Restrictor
12 Boiler Drain Tap
13 Heating Return
14 Cold Water DHW Inlet Tap
15 Gas Inlet
16 DHW Outlet
17 Heating Supply Connection
18 Condensate Connection
19 DHW Heat Exchanger
20 NTC DHW Sensor
21
22 3-Way Valve with Motor
23 Gas Valve
24 Water Safety Thermostat
25
NTC Heating sensor (Flow/Return)
QTY 2, (1 Shown for clarity)
26 Ignition Electrode
27 Pressure Switch
28
Pressure Relief Valve
Illustrations are a depiction of the boiler for general location of parts and may vary depending on model.
9
16
27
2
25
24
19
4
1
26
3
6
5
7
8
28
10
11
12
14
13
15
17
18
20
21
22
23
240012564 REV A, [05/15/2019]
DUNKIRK DCCF-150
