Chapter 1 Before Operation
No. Item Details
[6] Folding position Enter a folding position. A distance from the lead edge of paper to
the folding position is displayed.
Setting range: (paper length/2) ± 15 mm/0.59 inch
*The value must be between 85 and 320 mm/3.35 and 12.59 inches
and the dierence with the paper width must be between 85 and
320 mm/3.35 and 12.59 inches.
Default: paper length/2
[7] Stitching width Enter a length between the centers of two stitches.
Setting range:
58.5 mm/2.31 inches to (paper width - 30 mm/1.18 inches) (for 2
stitches)*
* The upper limit is 328 mm/12.91 inches
58.5 mm/2.31 inches to (paper width - 30 mm/1.18 inches) (for 2
stitches when the 4 STITCH KIT is attached)*
* The upper limit is 223 mm/8.77 inches.
Default: paper length/2
*It will be set at a position avoiding this area.
For side stitching, a length from the edge of the paper is displayed.
Default: 15 mm/0.59 inch
[8] Job setting icon This icon means that you are currently setting a job.
[9] Memory No. Displays the memory No. for which you are currently making
settings.
[10] Return key Returns to the [Main] screen without saving the settings.
[11] Previous page key Returns to the trimming setting screen.
[12] Next page key Moves to the nished size screen. This screen is displayed when “fore-
edge trimming on“ or “head/foot trimming on” has been selected.
[13] (return) key Pressing the key saves the setting in the memory and the {Main]
screen is displayed.

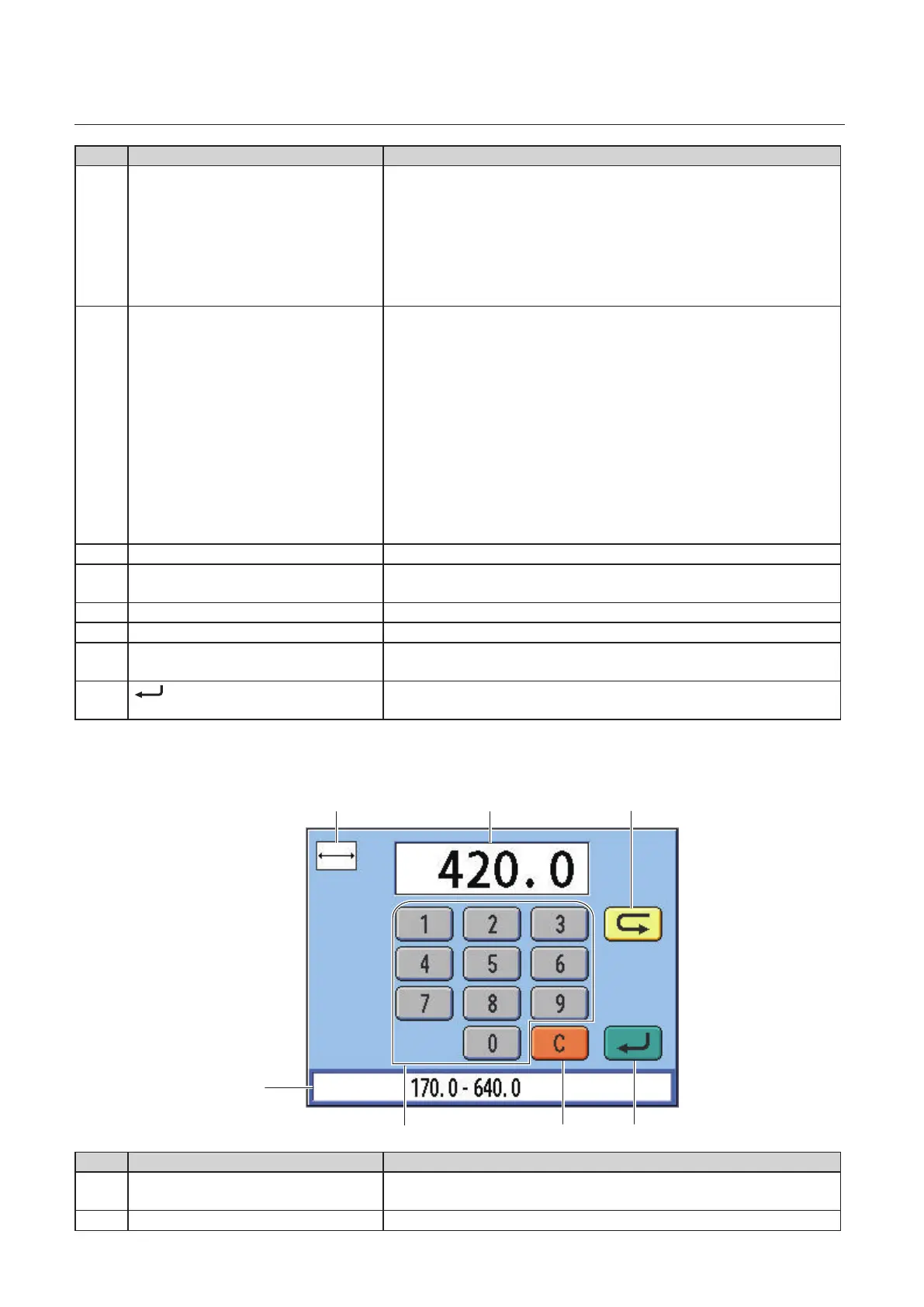

Numeric entry screen
[4][5][6]
[1]
[3]
[2]
[7]
No. Item Details
[1] Item icon An icon is displayed according to the item for which you are entering
values. In the gure above, the icon for paper size entry is displayed.
[2] Numerical display Displays a value entered.
