Chapter 1 Before Operation
No. Item Details
[3] Return key Returns to the paper size entry screen without saving the value.
[4] key Conrms the value entered. If the value entered is not within the
setting range, you will hear the beep sound twice. The value entered
will be invalid.
[5] Clear key Clears the value entered.
[6] Numeric keypad Use this to enter values.
[7] Message display Displays a setting range for the item currently selected.

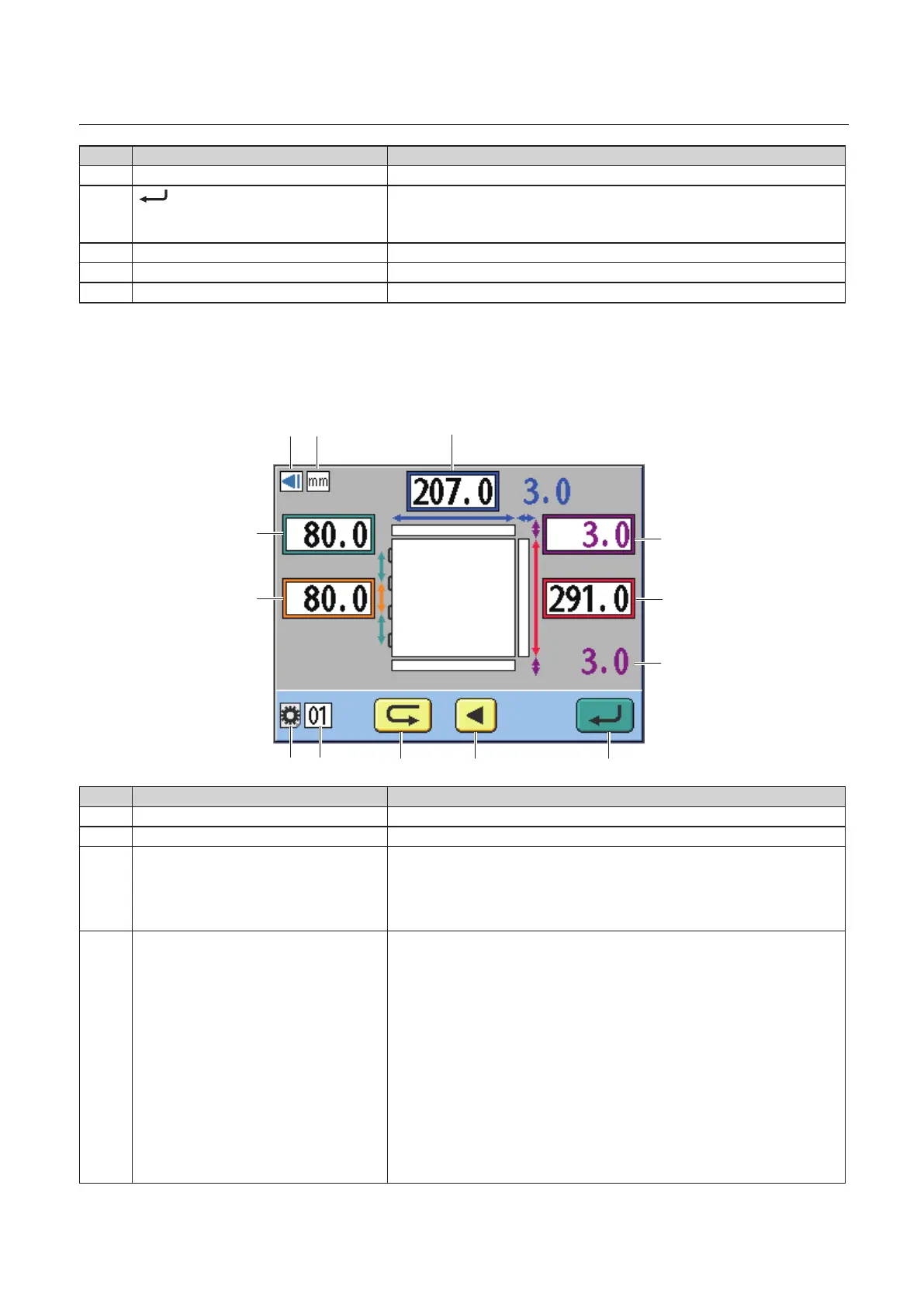

4-4-4. Finished size entry screen
This is a screen to enter a nished size and is displayed when “fore-edge trimming on” or “had/foot trimming
on” has been selected.
[3][2]
[4]
[7]
[1]
[5]
[6]
[9] [10] [11]
[13][12]
[8]
No. Item Details
[1] Paper conveyance direction Displays the paper conveyance direction.
[2] Unit Displays a unit for a value currently displayed.
[3] Finished paper length Enter nished length.
Setting range: 75 to 304 mm/2.96 to 11.96 inches (trimming space is
between 1 and 75 mm/0.04 and 2.96 inches)
Default: (nished length after trimming/2) - 3.0 mm/0.12 inch
[4] Finished paper width Enter a nished width.
For head/foot trimming on
Setting range:
paper width - (30.0 mm/1.18 inches x 2) to paper width -
(1.0 mm/0.04 inch x 2) mm
Default:
(paper width - (3.0 mm/0.12 inch x 2))
For gutter cutting:
Setting range:
(paper width - 6.0 mm/0.24 inch - 30.0 mm/1.18 inches x 2)/2 to
(paper width - 6.0 mm/0.24 inch - 1.0 mm/0.04 inch x 2)/2
Default:
(paper width - 6.0 mm/0.24 inch - 30.0 mm/1.18 inches x 2)/2
To Next Page
