3. Installing the Machine
3-2. Mounting the Components

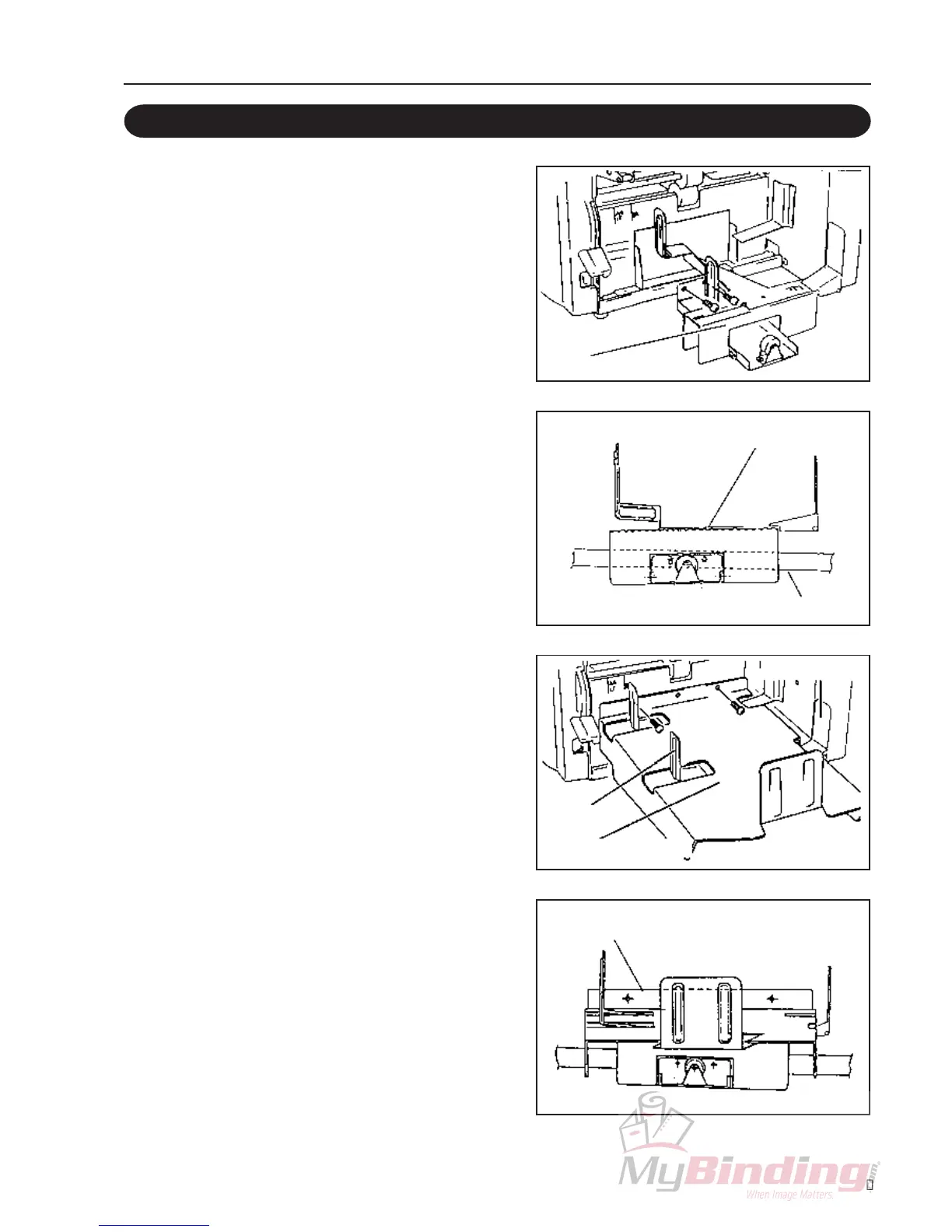

1 Attach the jogger as shown in the fig-
ure.
Remove the two set screws attached to the main body
and fix the jogger unit with the screws.
Partstobeused:
Jogger unit.........1
• After temporarily tightening the two set screws, press
down both right and left ends of the jogger unit evenly
to prevent inclination as shown in the figure, then
tighten the two set screws.
2 Attach the paper receiver tray.
1 Align the jogger (left) with the reading on the B5.
2 Remove the two set screws attached to the main body.
3 Insert the jogger (right) into the holes at right side of
the paper receiver tray and fix the paper receiver tray
on the jogger unit with the two set screws.
Partstobeused:
Paper receiver tray.........1
4 After temporarily tightening the two set screw, press
down both right and left ends of the paper receiver tray
evenly to prevent inclination as shown in the figure,
then tighten the two set screws.
JoggerUnit
JoggerUnit
ReinforcementPlat(lower)
Jogger(right)
PaperReceiverTray
PaperReceiverTray
Jogger(left)
