115
c Platemaking/Master Feed and Ejection Section
chap.3
R8S03051
The hole must be visible.
The hole must
be visible.
Set to the B mode.
R8S03049
R8S03050
The hole must
be visible.

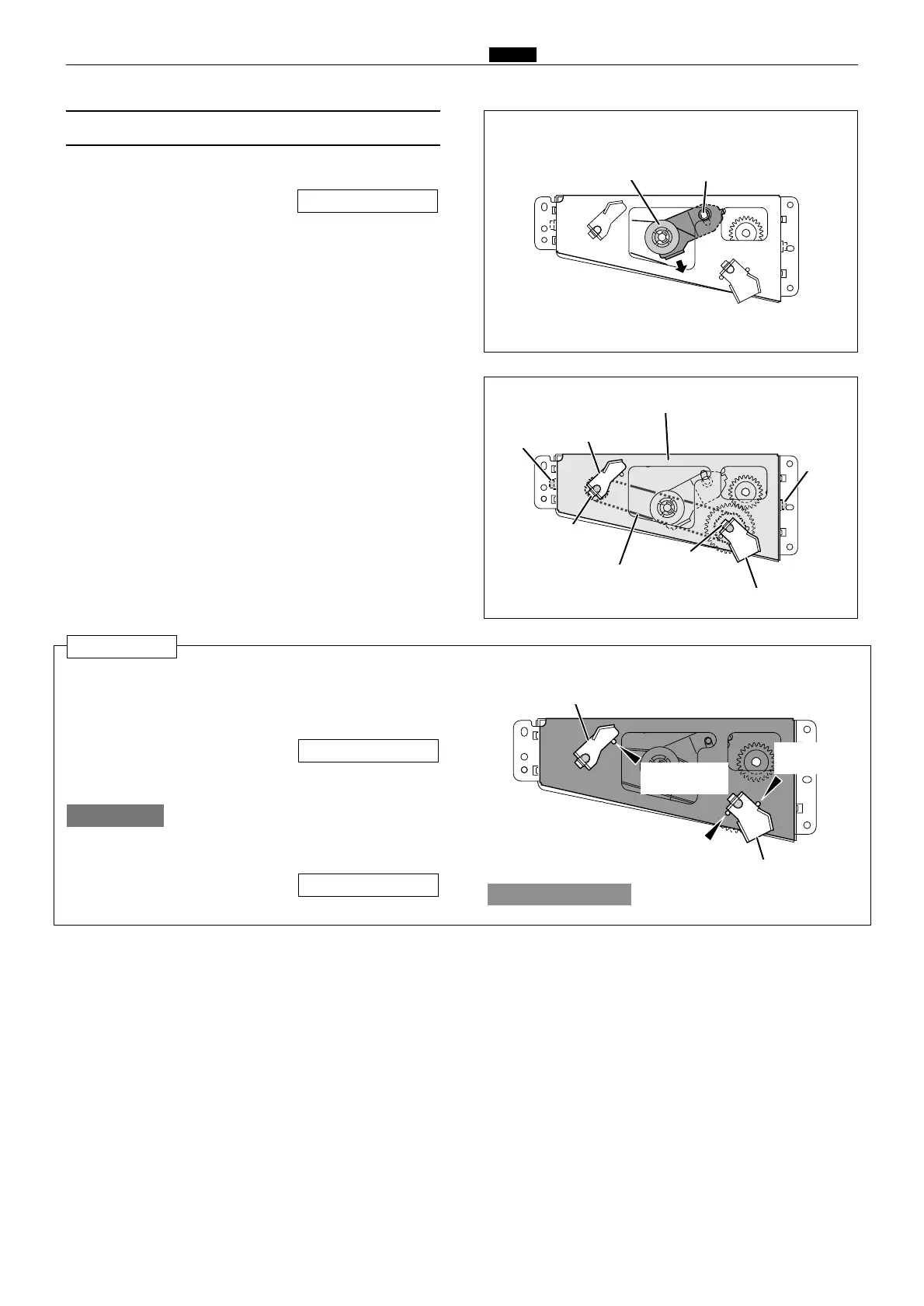

1. Remove the master clamp opening / closing unit.
2. Loosen the screw to loosen the tension as shown
in the figure.
\See page 114
3. Remove the screw indicated, and remove the
opening / closing lever.
4. Remove the 2 screws indicated, and remove the
reinforcement plate.
5. Remove the timing belt.
• Adjust tension by adjusting the master feed mas-
ter clamp opening/closing lever and master ejec-
tion master clamp opening/closing lever. Then fit
the timing belt on.
Adjust the B and C modes after the
master clamp opening / closing unit
is attached to the printer main body.
IMPORTANT :
(3) Removal of Timing Belt
\See page 142
Reinstallation
\See page 143
Master ejection master
clamp opening/closing lever
Master feed master clamp
opening/closing lever
Tension
Screws
Screw
Timing belt
Screw
Open/close lever
Open/close
lever
Screw
Screw
Reinforcement plate
To Next Page
