Duplo DP-S510 - Cutter Unit

46
x Platemaking / Master Feed / Ejection Section
chap.2
Description
Completed, the stepping motor for platemaking and the drum stops temporarily, the cutter motor is turned on
to drive the cutter and the master is cut.

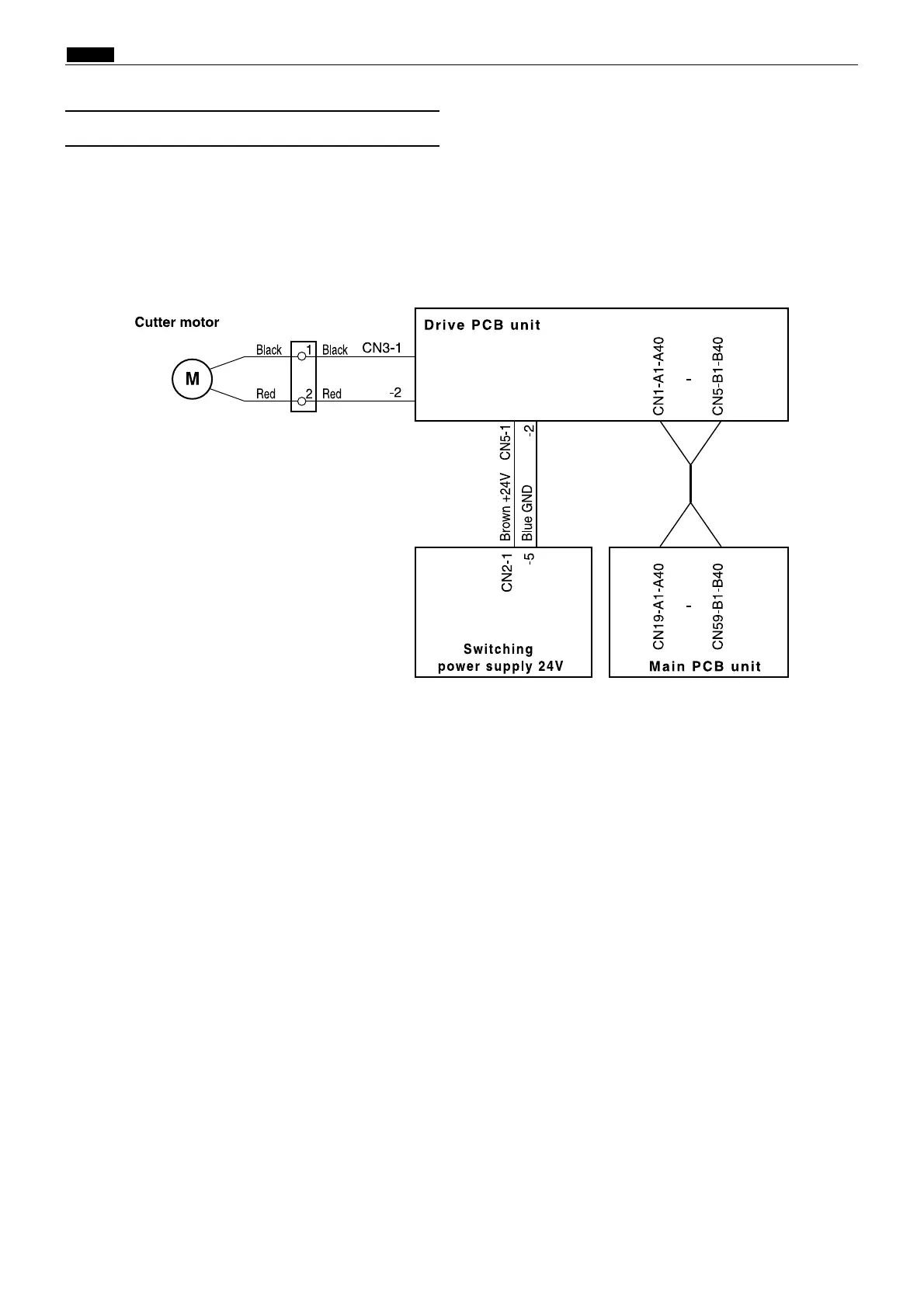

Circuit
(5) Cutter Unit
