54
x Platemaking / Master Feed / Ejection Section
chap.2
The mode is detected under the following conditions
2B mode
When the clamp sensor 2 (C mode) is photointerrupted, the clamp sensor 1 (B mode) detects the edge of photointerrupting
/
photopassing.
2C mode
When the clamp sensor 1 (B mode) is photointerrupted, the clamp sensor 2 (C mode) detects the edge of photointerrupting
/
photopassing.

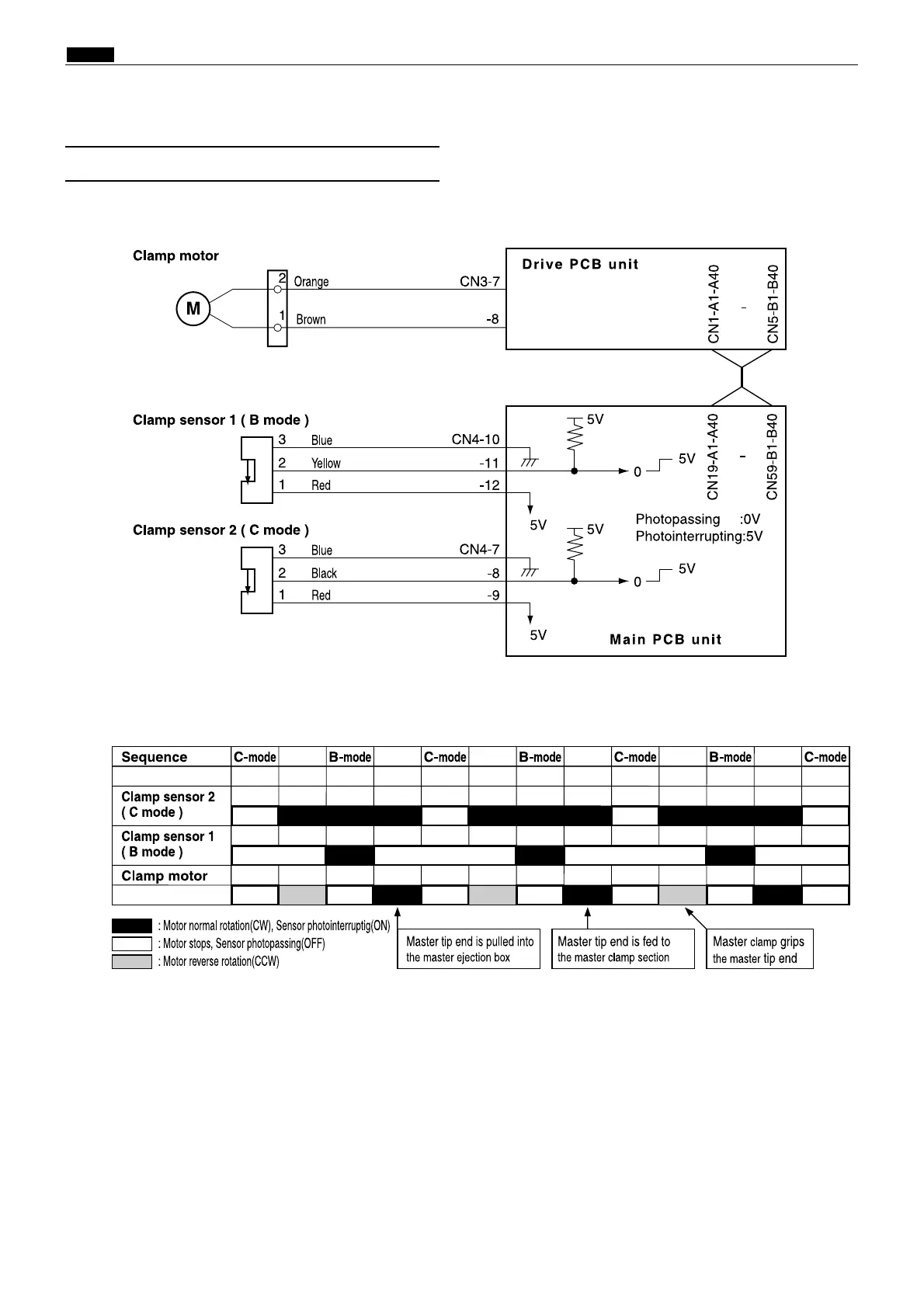

(1) B / C Mode Detect Sensor
Circuit
Operation / Sequence
3. Function of Parts
R8S02E14e
R8SS02G08e
