53
x Platemaking / Master Feed / Ejection Section
chap.2

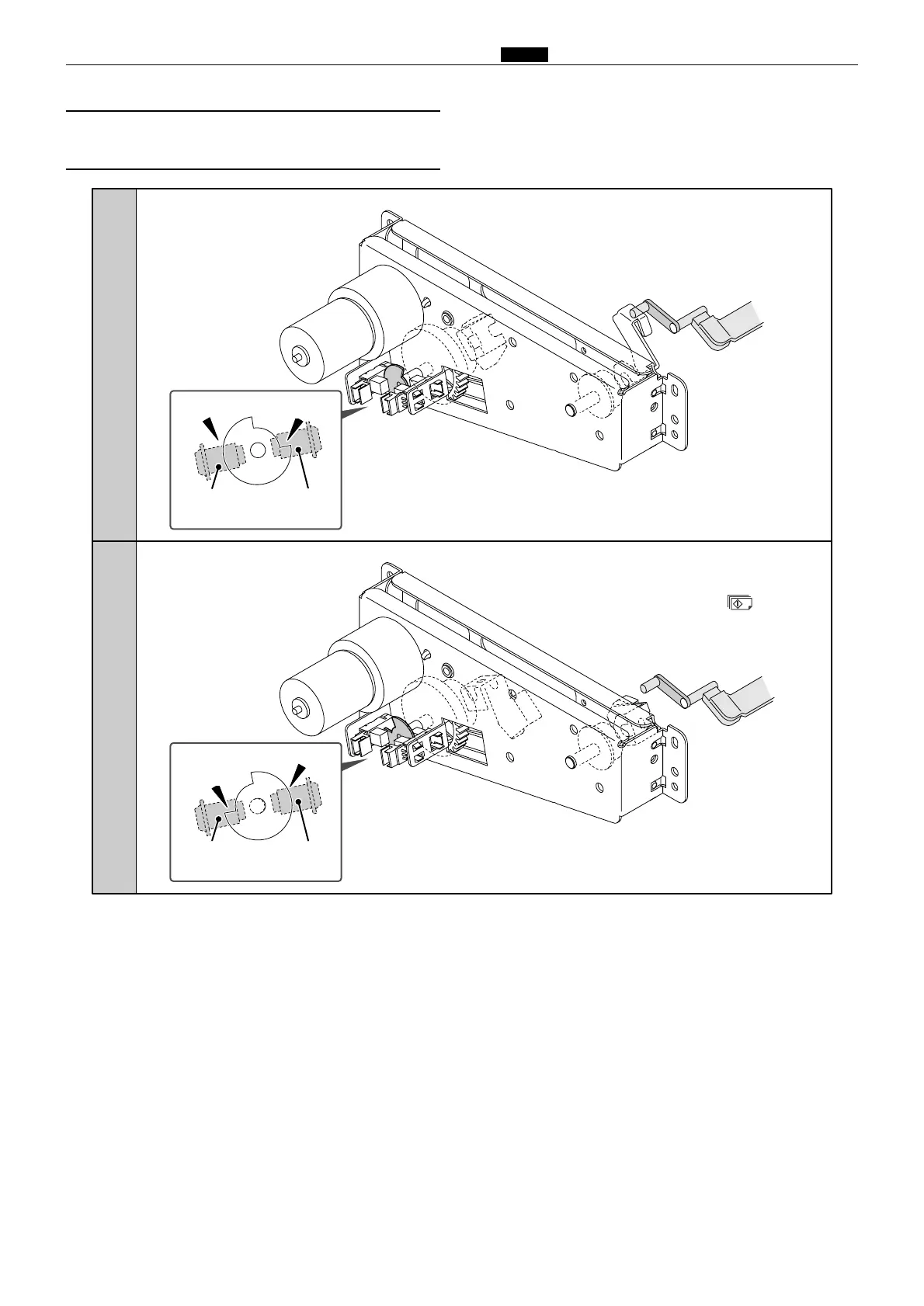

(3) Clamp Opening / Closing Lever
Position (B / C Mode)
The master clamp opening / closing lever
pinch the master clamp opening / closing
arm.
The master clamp is open.
¡ This state occurs when the master is attach
or detach.
¡ This state occurs when the (PRINT)
key is pressed.
B mode C mode
R8S02038
C mode detect
sensor
Photo-interrupting
B mode detect
sensor
Photo-passing
C mode detect
sensor
Photo-interrupting
B mode detect
sensor
Photo-passing
