Duplo DP-S510 - Removal of Outer Frame (Right) Unit

129
m Drum Section
chap.3

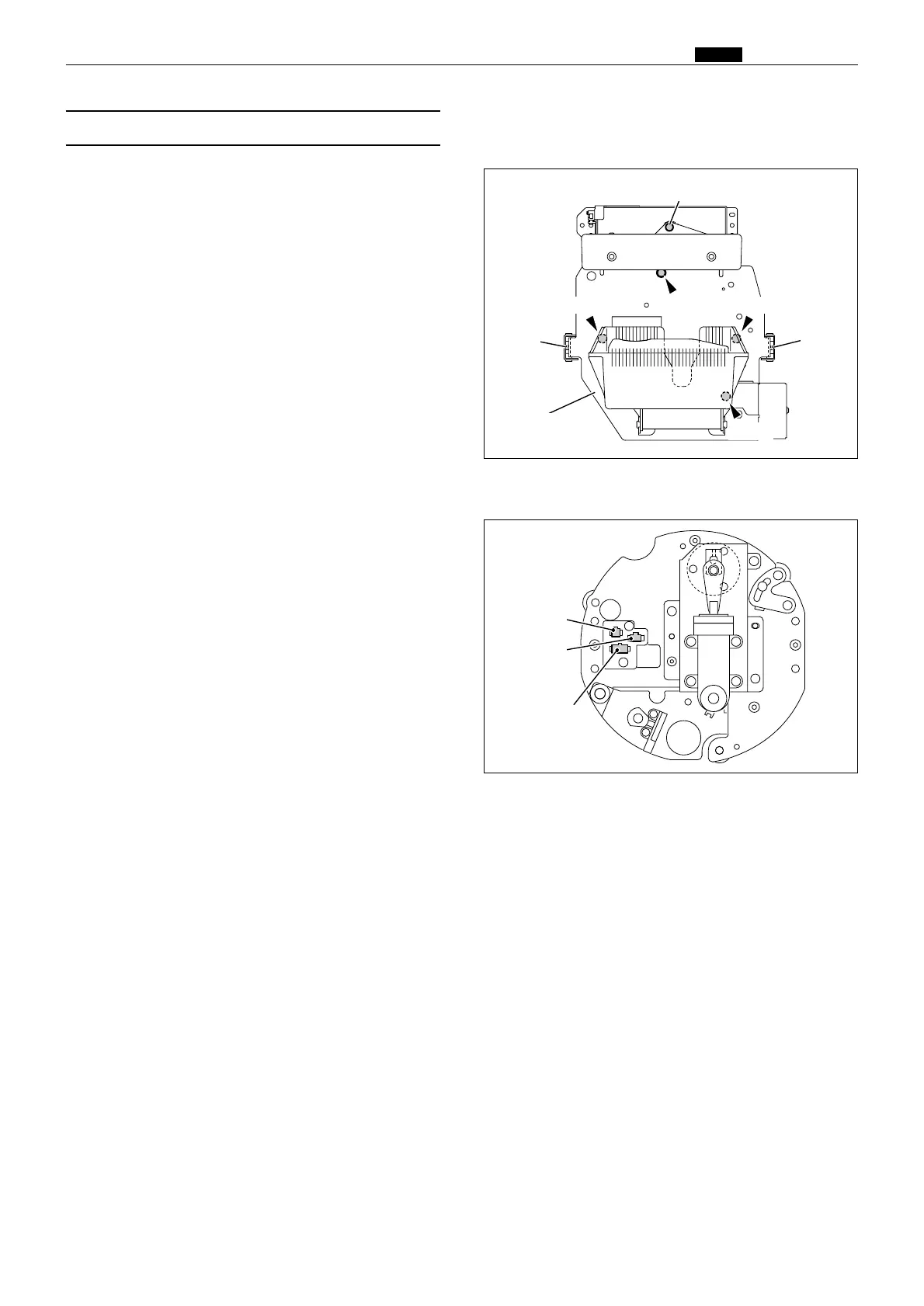

(4) Removal of Outer Frame (Right) Unit
1. Remove the drum unit.
2. Remove 2 screws on the rail and 1 screw on the
stay.
3. Remove 4 screws on the outer frame (right) unit.
4. Part the outer frame (right) unit a little and
remove 3 connectors.
5. Remove the outer frame (right) unit.
Connector
R8S03090
R8S03091
Screw
Connector
Connector
Screw
Screw
(rail)
Screw(stay)
Screw Screw
Screw
(rail)
Outer frame
(right) unit
