Duplo DP-S510 User Manual

92
m Drum Section
chap.2
Description
The ink control section in the drum is supplied with ink in the ink pack by driving the ink pump motor.
Operation
The piston performs suction and release operation by moving up and down.
When the piston moves up, it draws ink from the
ink pack into the pump.
When the piston moves down, the pump releases
ink.

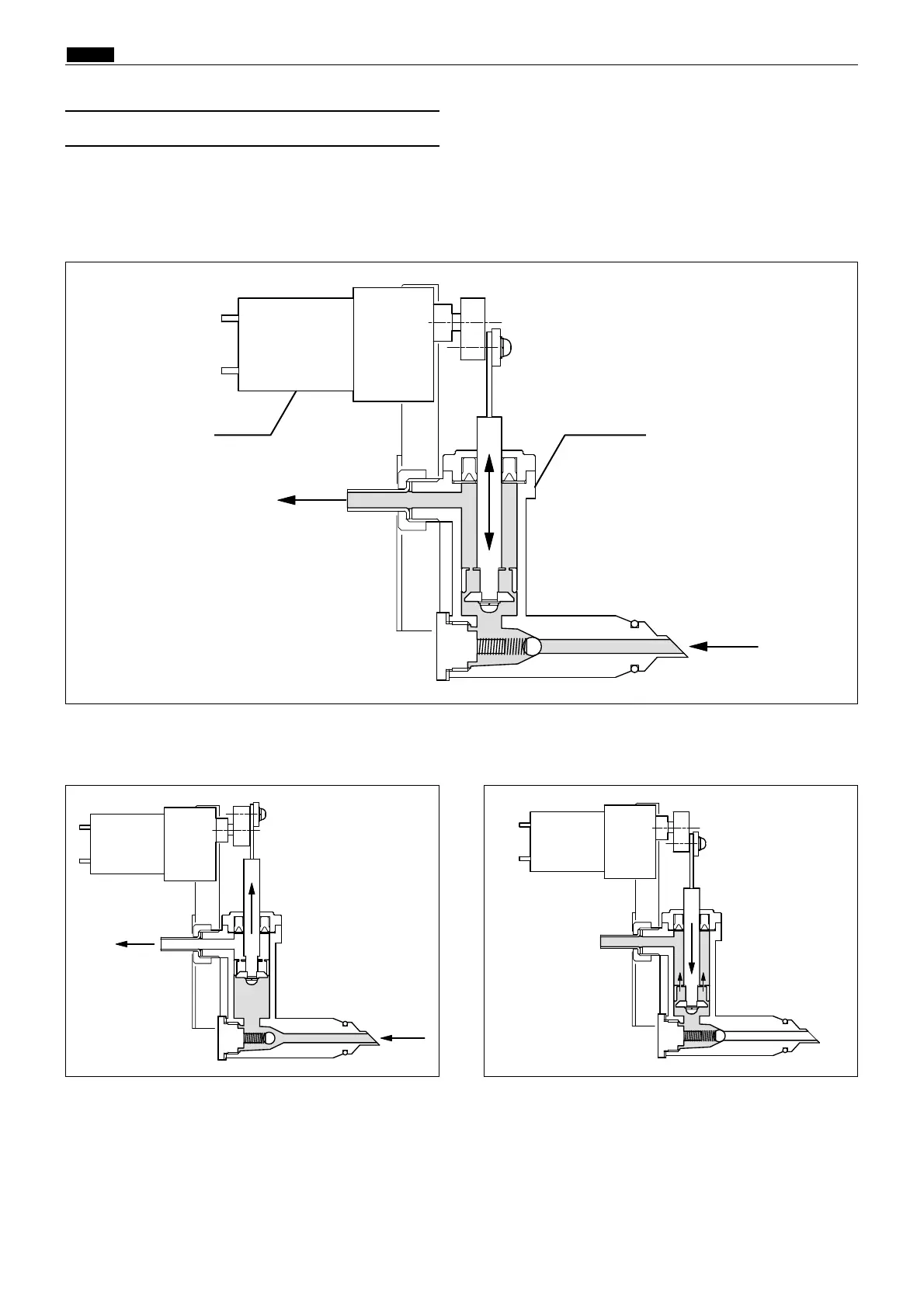

Mechanical Structure
(3) Ink Pump
R8S02083
R8S02084 R8S02085
Ink pump motor Ink pump
