Item Standard value
144

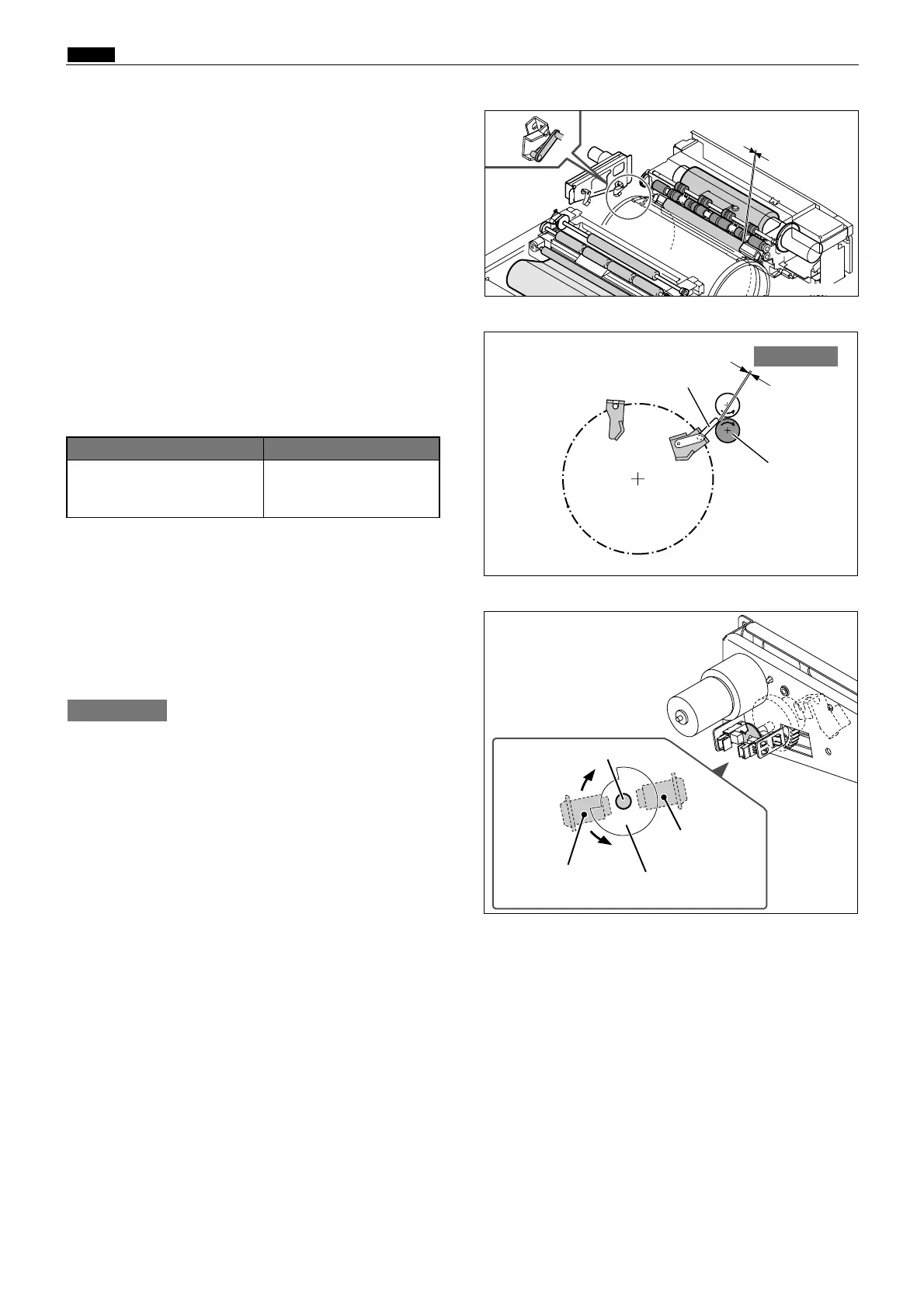

x Platemaking / Master Feed / Ejection Section
chap.4
Standard value
¡Check that the clearance between the master ejection
box's rubber roller and the master clamp plate is
within the range given below.
If the clearance is outside the standard range
1. Loosen the fixing screw, then adjust the clamp
sensor 2 (c mode).
Do not press the master clamp
against the rubber roller.
IMPORTANT :
Clearance between master
ejection box's rubber roller and
master clamp plate
0.5
-
1.0 mm
Close
Open
B/C mode shade plate
Fixing screw
Rubber roller
Master clamp plate
0.5
-
1.0mm
7. Open the scanner unit.
MR8S04014
R8S04015
R8S04016
0.5
-
1.0
mm
Clamp sensor 1
(B mode)
Clamp sensor 2
(B mode)
To Next Page
