290

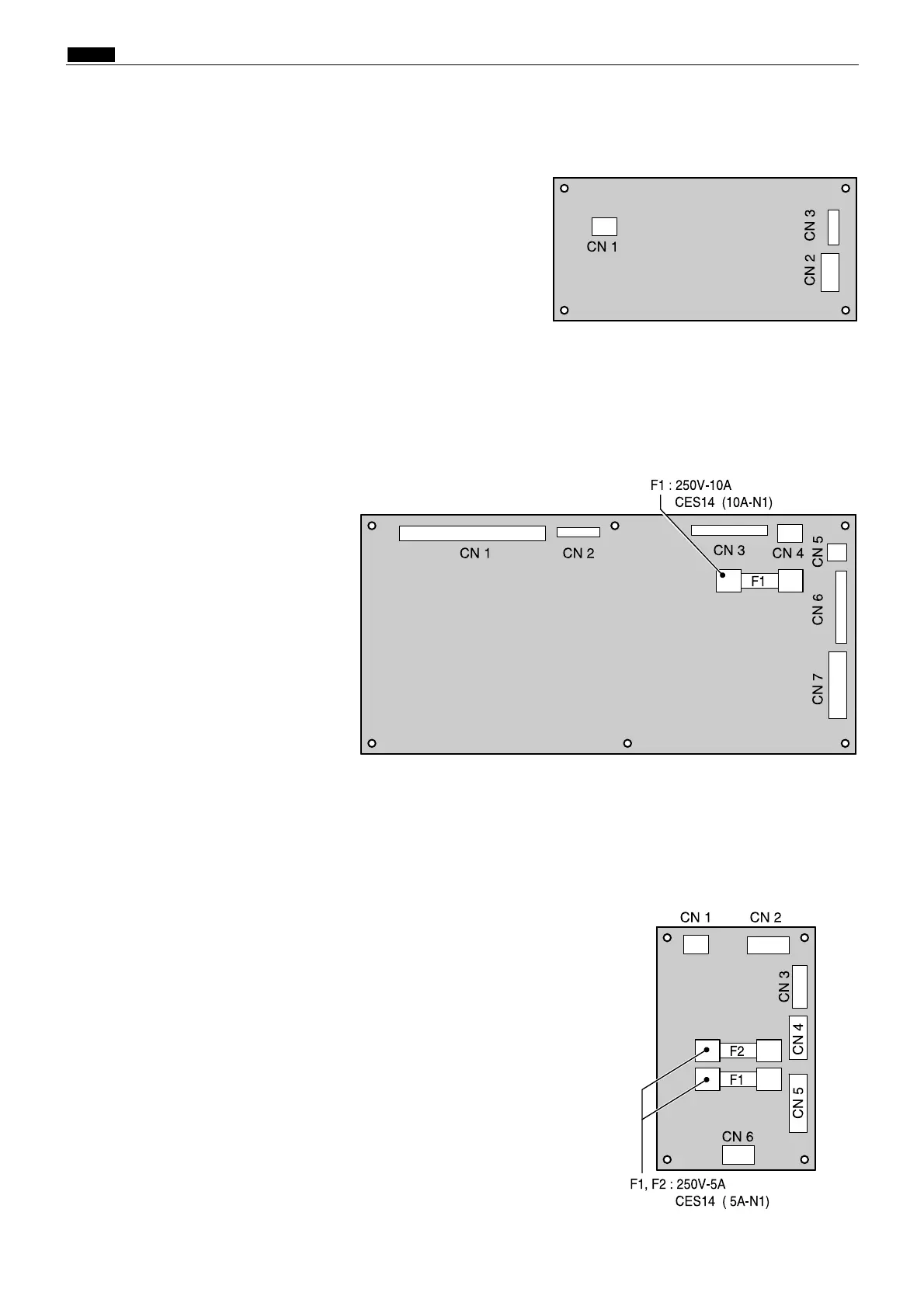

z Electrical Parts Layout and Their Functions
chap.8
9) Main Motor unit (R8-V327
**
)
10) Drive PCB unit (R8-V312
**
)
R8S09014
R8S09015
R8S09016
11) Relay PCB unit (R8-V362
**
)
