2.2 Pushing the covering hood back and removing the fabric sliding sheet
Caution: Danger of injury!
Switchthemainswitchoff.
Push the covering hood back and remove the fabric sliding sheets only
with the sewing unit switched off.
–
Switchthemainswitchoff.

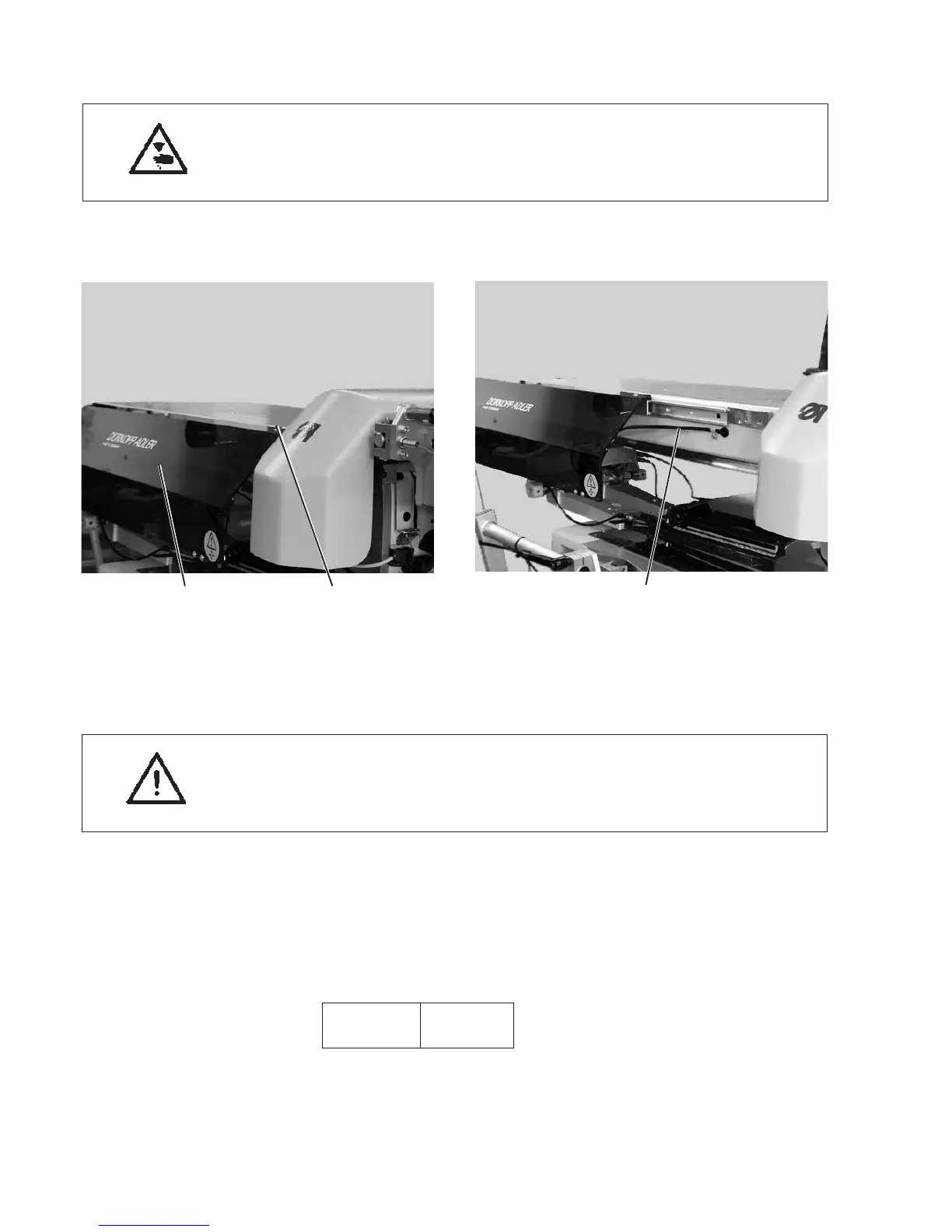

Pushing the covering hood back
–
Loosen screw 1 of covering hood 2.
–
Push the covering hood 2 to the left.
ATTENTION!
Push the covering hood 2 to the left only so far that the cable 3 of the
light-barrier is not damaged.
–
Push the covering hood 2 back to the right again.
–
Secure the covering hood 2 against displacement with the screw 1.
Note!
With the covering hood pushed back, a s afety message appears on the
screen of the control panel.
E r r 9004
Covering hood not pushed back.
