3.6.3 Connection to the factory-own vacuum system

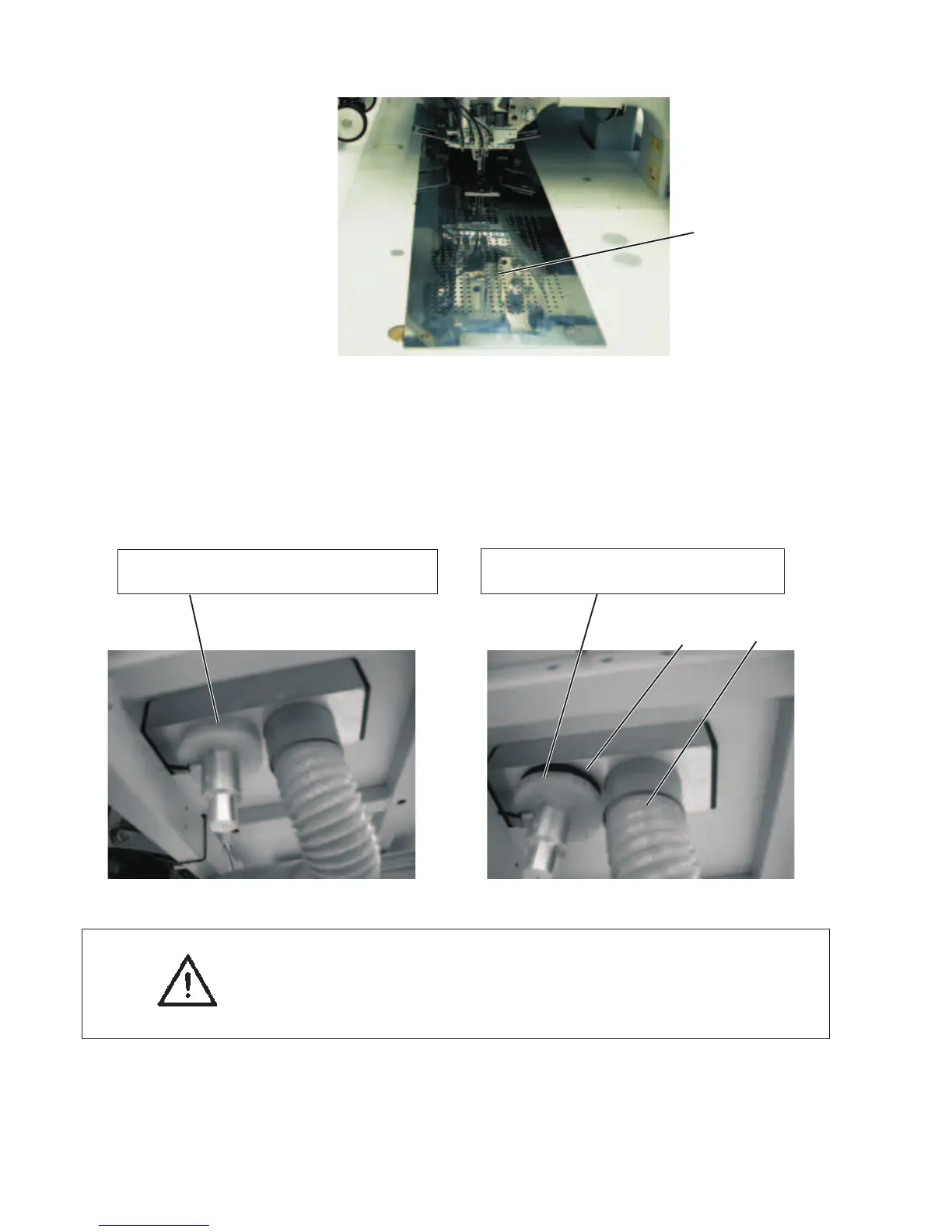

The suction device facilitates the precise feeding and positioning of the
workpiece on the work table 1.
–
Connect the hose of the factory-own vacuum system to the
connection valve 3.
Note:
In case no factory-own vacuum system is available, the vacuum blower
(Order No. 0745 597964) has to be ordered in addition.
ATTENTION !
When fitting the vacuum blower ,it is absolutely
necessary to remove the seal 2 (black) from the valve.
Only the filter (white) should be attached to the valve.
44
23
Only filter (white) for use with vacuum
blower (Order No. 0745 597964).
Seal (black) in front of filter (white) for use
with central vacuum system.
