2.10.2 Adjusting the corner knives
Caution: Danger of injury!
Switchthemainswitchoff.
Adjust the corner knives only with the sewing unit switched off.
–
Swing the corner knife station out (see chapter 2.10.1)

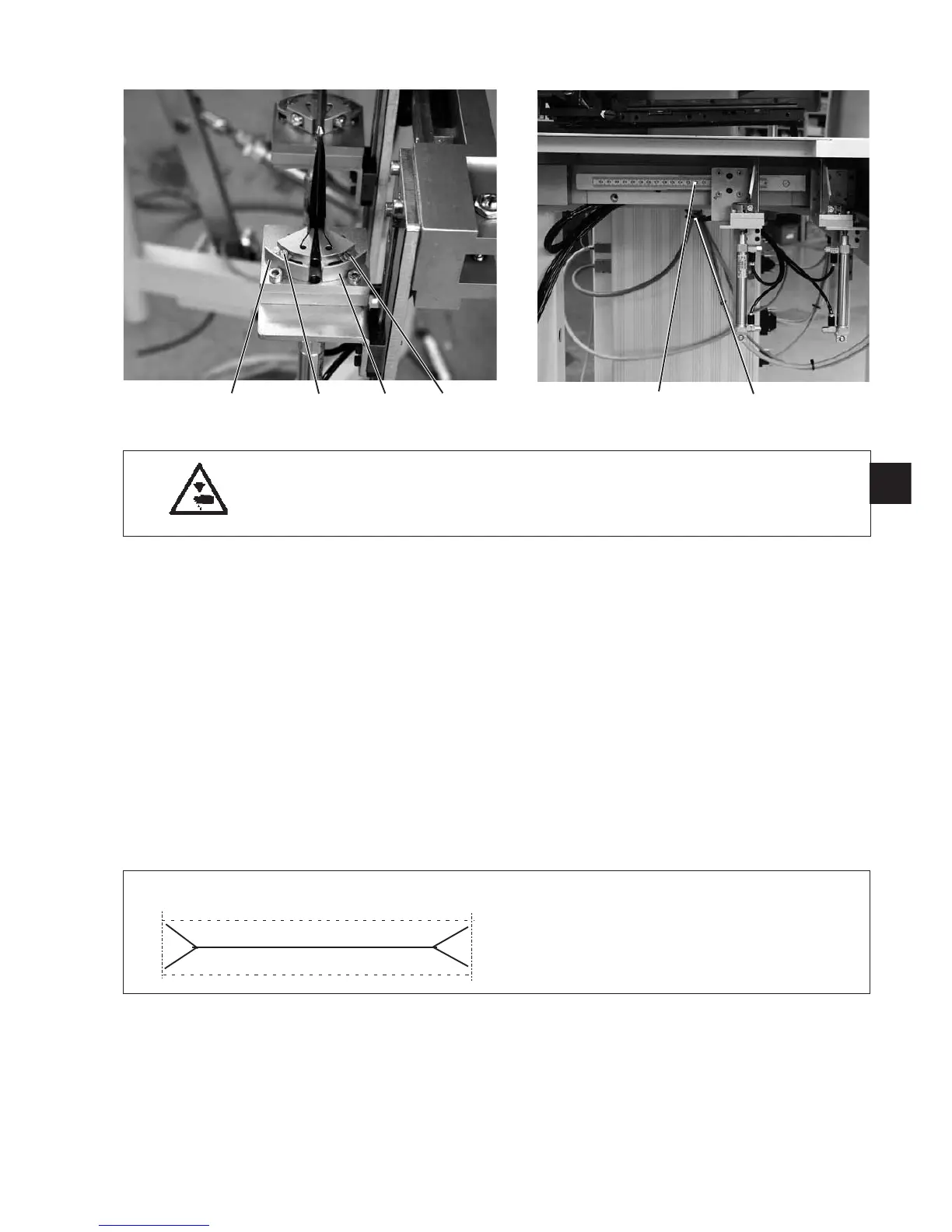

Setting the angle of the corner knives
The angle of the corner knife is adjusted b y turning the knife blocks 2
and 4.
–
Loosen screws 1 and 3.
–
Turn the knife blocks 2 and 4 equally.
–
Tighten screws 1 and 3.
–
Adjust the angle of the other pair of knives correspondingly.
Height of the corner knives
The corner knives are not height-adjustable.
The knives always cut through completely.
–
Swing the corner knife station in (see chapter 2.10.1).
Seam beginning Seam end
Straight pocket corners
Right and left corner knife
incisions lie parallel
Position of the adjustable k nife block
The position of the adjustable knife block corresponds to the seam
length L1.
–
Loosen clamping lever 5 and set seam length L1 on scale 6.
–
Tighten clamping lever 5.
1
25
4321
65
