Changing the needles
Caution: Danger of injury!
Switchthemainswitchoff.
Change the needles only with the main switch turned off.
Danger of cutting your fingers!
Do not reach into the area of the center knife 3 when changing the
needles.
–
Swing the folding station aside (see chapter 2.1)
The needles are freely accessible.
–

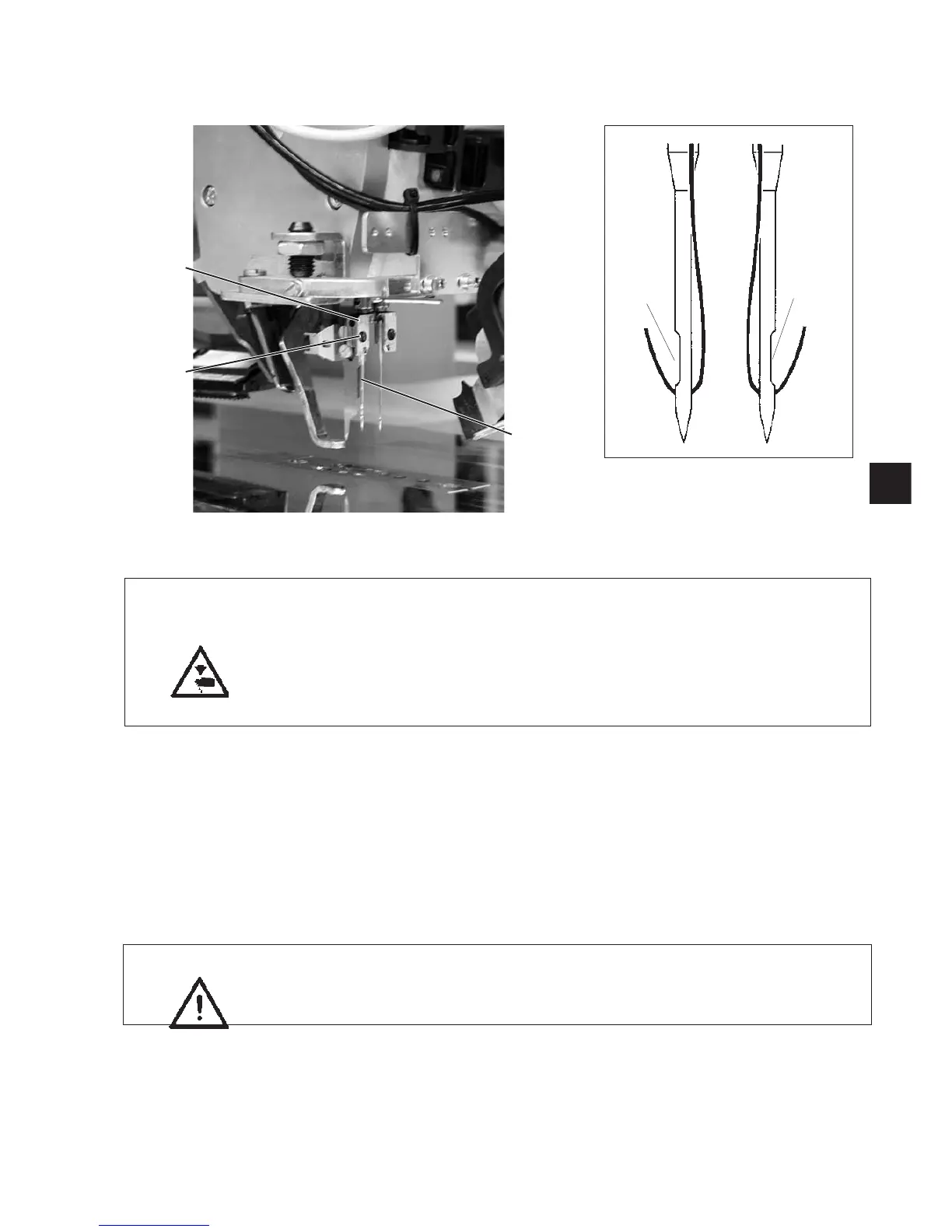

Loosen screw 2 and remove the needle from the needle holder 1.
–
Insert the new needle in the drill-hole of needle holder 1 as far as it
will go.
ATTENTION!
Seen from the operator ’s side, the hollow groove 4 of the left
needle must point to the left and the hollow groove 5 of the right
needle to the right (see sketch).
–
Tighten screw 2.
ATTENTION!
After changing over to another needle size the needle protection on the
hook has to be readjusted (see Service Instructions).
Hint:
The standard needle size of class 745-34 is Nm 100 .
1
15
1
2
3
4
5
