No. 60027, Issue 4. January 1998
5 Installation
20
5.4.4

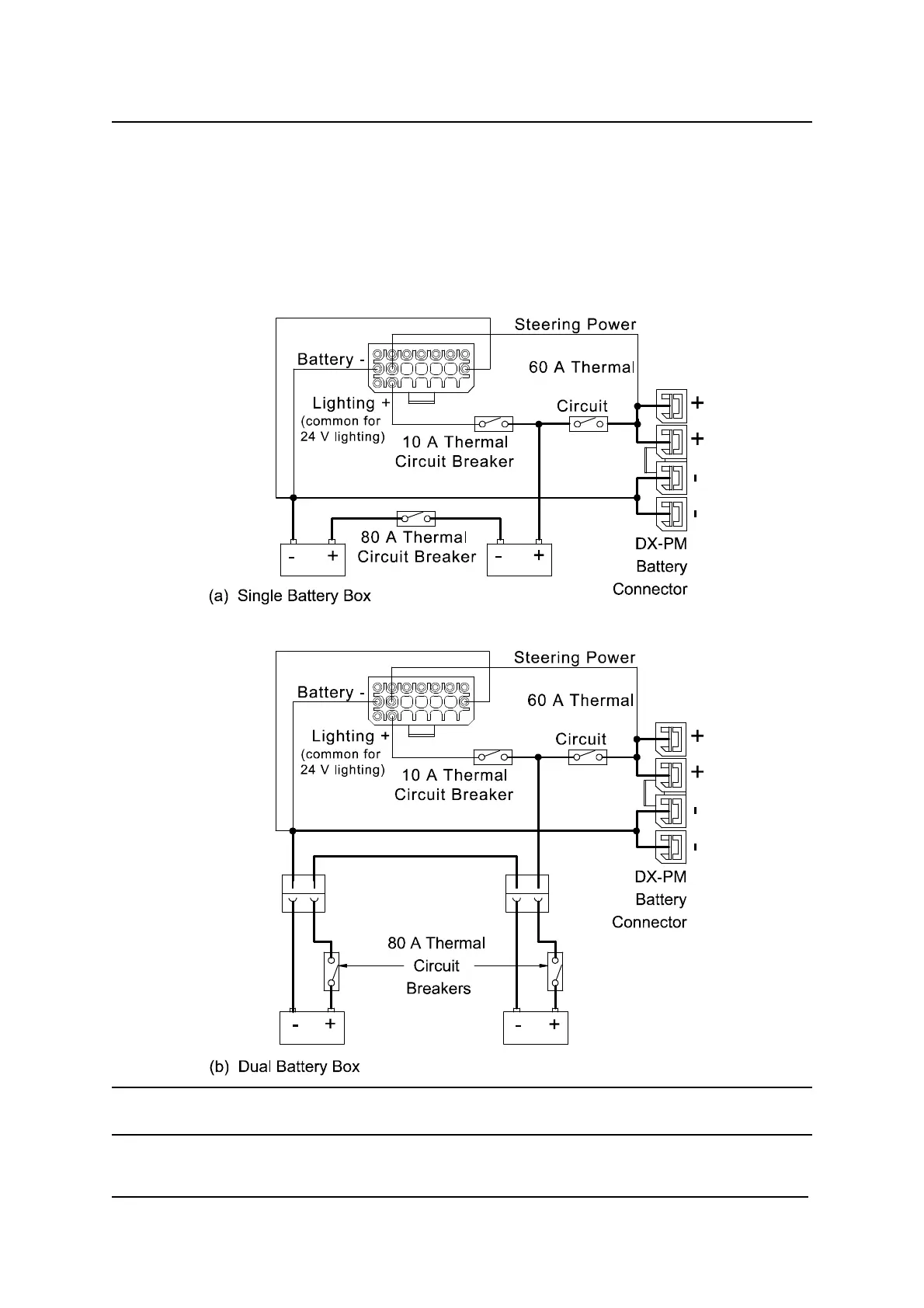

Power Supply from the Battery
When
the servo motor and lighting require more current than the 12 A DXBUS
current rating has available, the SLM must be powered directly from the battery.
Both
battery negative terminals on the SLM must be used to achieve TÜV
compliance.
Note
Heavy lines denote 3 mm² or heavier wire. All other wires from the 21 way
connector as specified in section 5.4.2.
22
24
Table of Contents
Default Chapter
2
Table of Contents
2
1 Introduction
4
2 Related Documentation
5
3 General Description
6
General Features
7
Safety and Protection Features
7
4 Specification
9
Electrical Specifications
9
Mechanical Specifications
11
Environmental Specifications
12
5 Installation
13
Introduction
13
Mounting
13
SLM Connection with the DX System
15
DXBUS Connections
15
DX Module Interconnection Topology
16
DXBUS Length and Voltage Drop Restrictions
18
SLM 21 Way Connector
21
Way Connector Pin Definitions
21
Way Connector Wires and Terminations
21
Power Supply from the DXBUS
22
Power Supply Form the Battery
23
SLM Connection to Lights
24
SLM Servo Connector
27
Servo Connector Pin Definitions
27
Servo Connector Wires and Terminations
27
SLM Connection to Servo Devices
28
6 Operation
29
SLM Activation
29
7 Programming
30
Introduction
30
Adding an SLM to the DX System
31
DX Remote PCD Parameters
32
Lighting Parameters
32
Drive Program Parameters
33
SLM PCD Parameters
36
Steering Profile Parameters
36
Other PCD Parameters
39
Using the PCD
47
Calibrating the SLM Using the HHP
48
Initial Operation
48
Calibrating Parameters
50
8 Diagnostics
52
Troubleshooting
52
Flash Codes
52
PCD Diagnostics
57
Status Report
57
Fault History
58
9 Maintenance
61
10 Safety and Misuse Warnings
62
11 Warranty
63
12 Sales and Service Information
64
