No. 60027, Issue 4. January 1998
5 Installation12

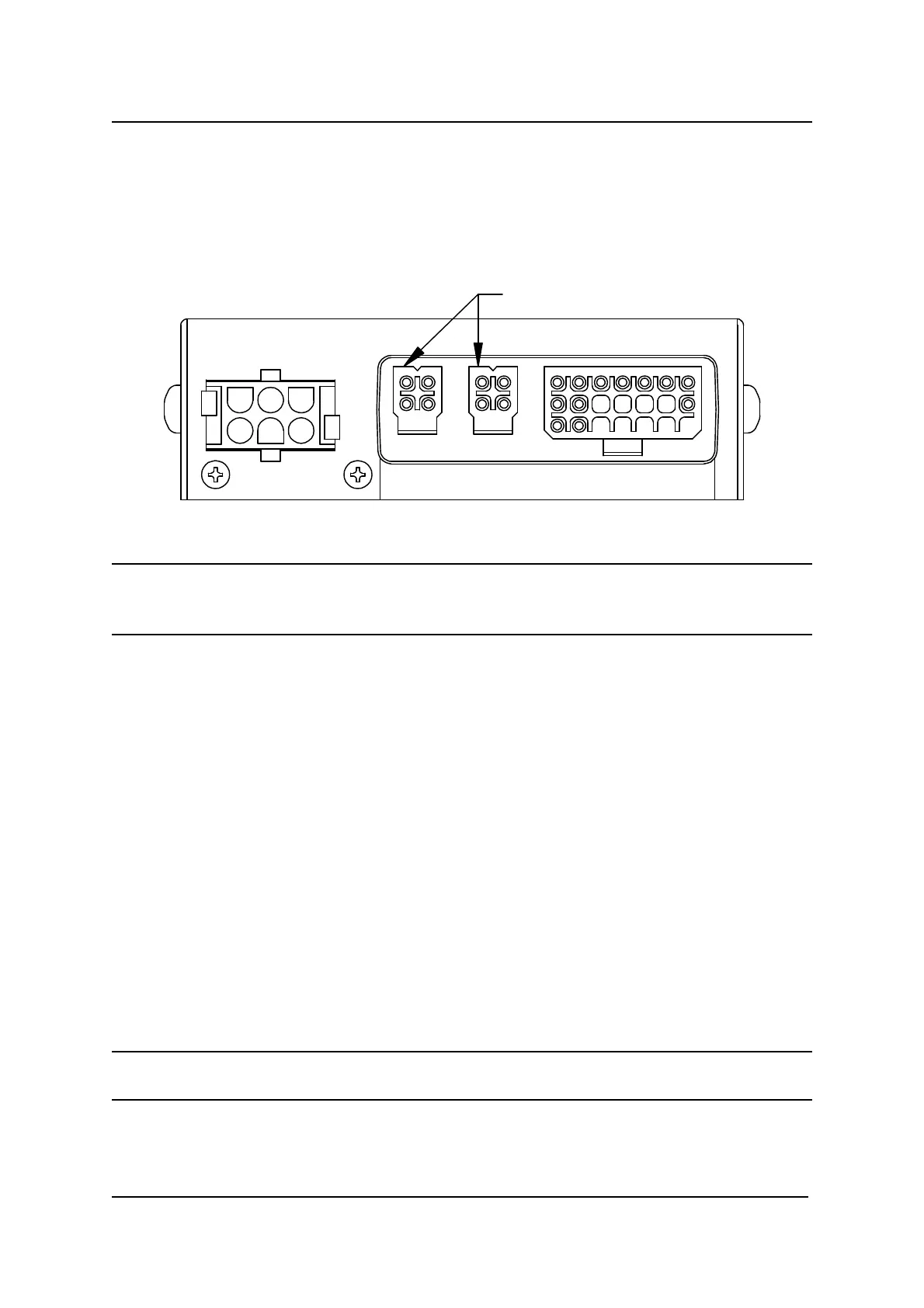

2 x DXBUS Connectors
5.3 SLM Connection with the DX System
5.3.1 DXBUS Connections
Note If only one DXBUS connector is used on the SLM and the remaining
connector is accessible to the wheelchair user, a dummy DXBUS plug should be
fitted to the unused connector. This will comply with ISO 7176.
A dummy DXBUS plug can be made from:
DXBUS Connector Boot Part/Order Number GCN 0789
DXBUS Connector Housing Part/Order Number GCN 0792
Like all other DX Modules the SLM is connected to the DX system using the
DXBUS. Cables are available in the following standard lengths:
DXBUS CABLE, Straight, 0.1 M Part/Order Number GSM 63001
DXBUS CABLE, Straight, 0.3 M Part/Order Number GSM 63003
DXBUS CABLE, Straight, 0.5 M Part/Order Number GSM 63005
DXBUS CABLE, Straight, 1.0 M Part/Order Number GSM 63010
DXBUS CABLE, Straight, 1.5 M Part/Order Number GSM 63015
DXBUS cables are also available with ferrites fitted.
Note The order and positioning of the SLM within the DX system is important and
must be based on the rules discussed in section 5.3.2 and 5.3.3.
