Dynamic DX Installation Manual

No. 60027, Issue 4. January 1998
5 Installation24
3
6
2
5
1
4

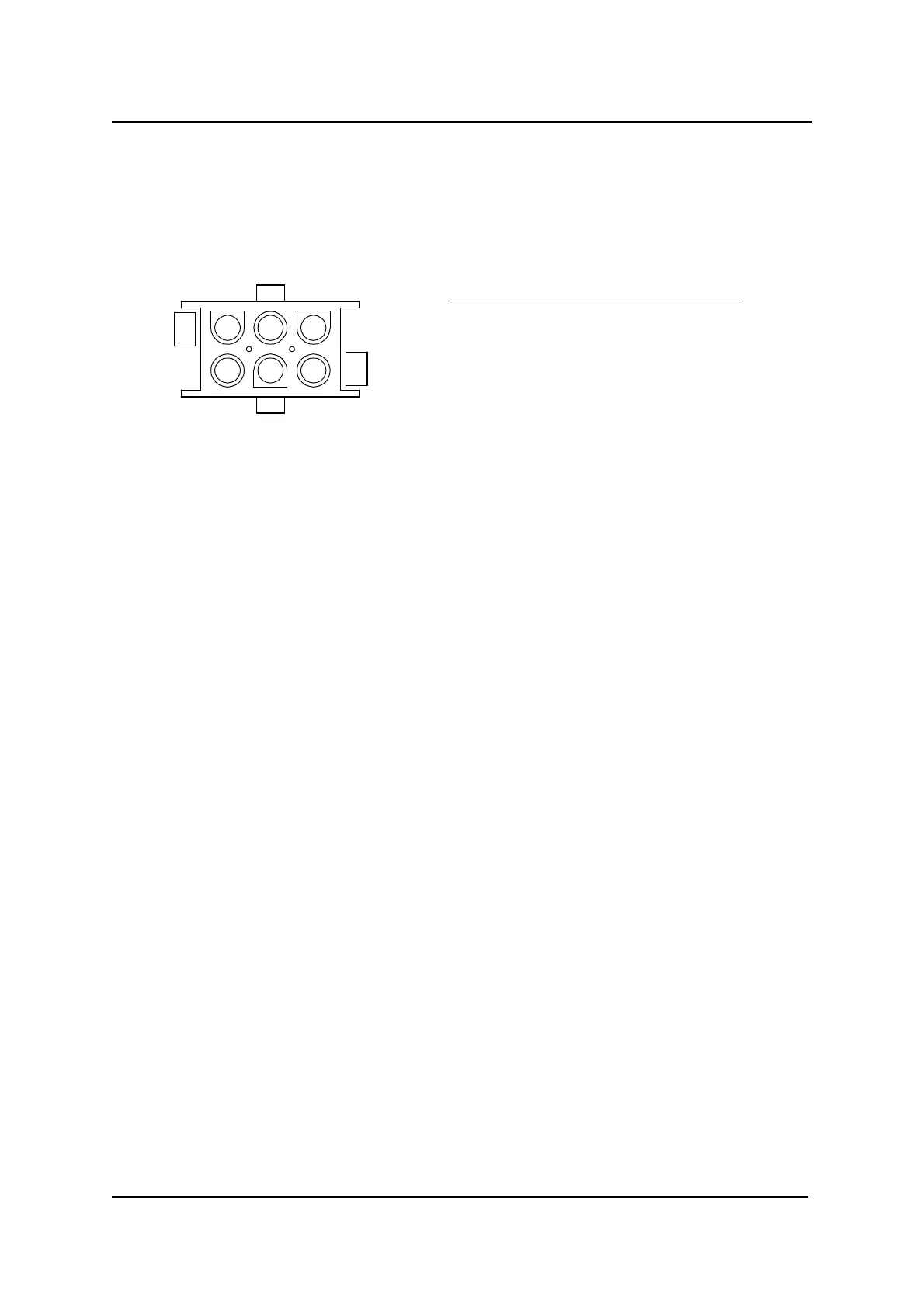

front view
Pin
1
2
3
4
5
6
Function
Motor -
Common Ground
Position Sense Pot +
Motor +
Clutch Switch
Position Sense Wiper
5.5 SLM Servo Connector
5.5.1 Servo Connector Pin Definitions
5.5.2 Servo Connector Wires and Terminations
To build a matching connector
To build a matching connector to fit the Servo Connector, the parts are :
AMP Mate-N-Lok Connector Housing AMP Part Number 1-480-704-0
(DCL Part Number GCN 0201)
Amp Universal Mate-N-Lok Contact AMP Part Number 350690-1
For 0.5 mm² wires (DCL Part Number GCN 0202)
Amp Universal Mate-N-Lok Contact AMP Part Number 350547
For 1.0 and 2.0 mm² wires * (Solid pin)
AMP Part Number 350705
(Split pin)
