Dynapac CA 150 - Instruments and Controls

8
CA 150 O150EN2
INSTRUMENTS AND CONTROLS
61011
5
4
20
3
2
1
21
16
15
18
19
17
12
13
14
78 9
1. Horn
2. Starter switch
3. Hazard beacon
4. Working lights
5. Reserve/parking brake knob
6. Instrument protection
7. Warning lamp, charging
8. Brake warning lamp
9. Warning lamp, engine oil
pressure/Engine temperature
10. Warning lamp, hydraulic filter
11. Warning lamp, air filter

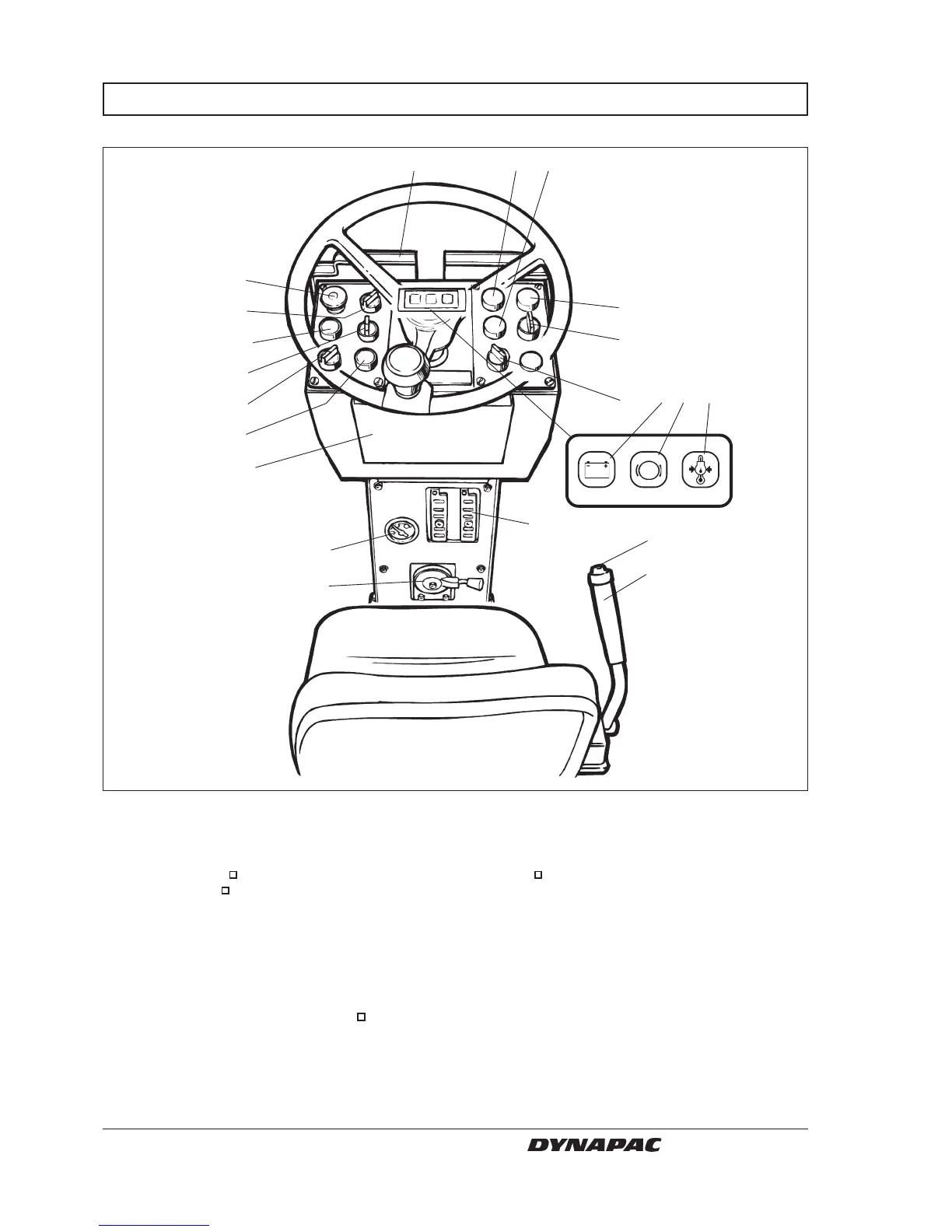

Fig. 6 Instruments and control panel
12. Warning lamp, hydraulic temperature
13. Amplitude selector Low/0/High
14. Speed selector, rear axle
15. Engine revs control
16. Fuel gauge
17. Fuse box
18. Vibration ON/OFF
19. Forward/Reverse lever
20. Test button for warning lamps
21 . Handbook compartment
= Optional
