Turn the rev control (15) upward and latch it at its limit.
The engine speed should be about 2300 r/min.
Check that the steering is working by turning the
steering wheel once to the right and once to the left,
while the roller is stationary.
Ensure that the area in front of and behind
the roller is clear.
Pull up the reserve/parking brake knob (5)
and check that the warning lamp for the
parking brake is out. When starting the
roller on a slope, be prepared that it may
begin to roll.
Driving the roller

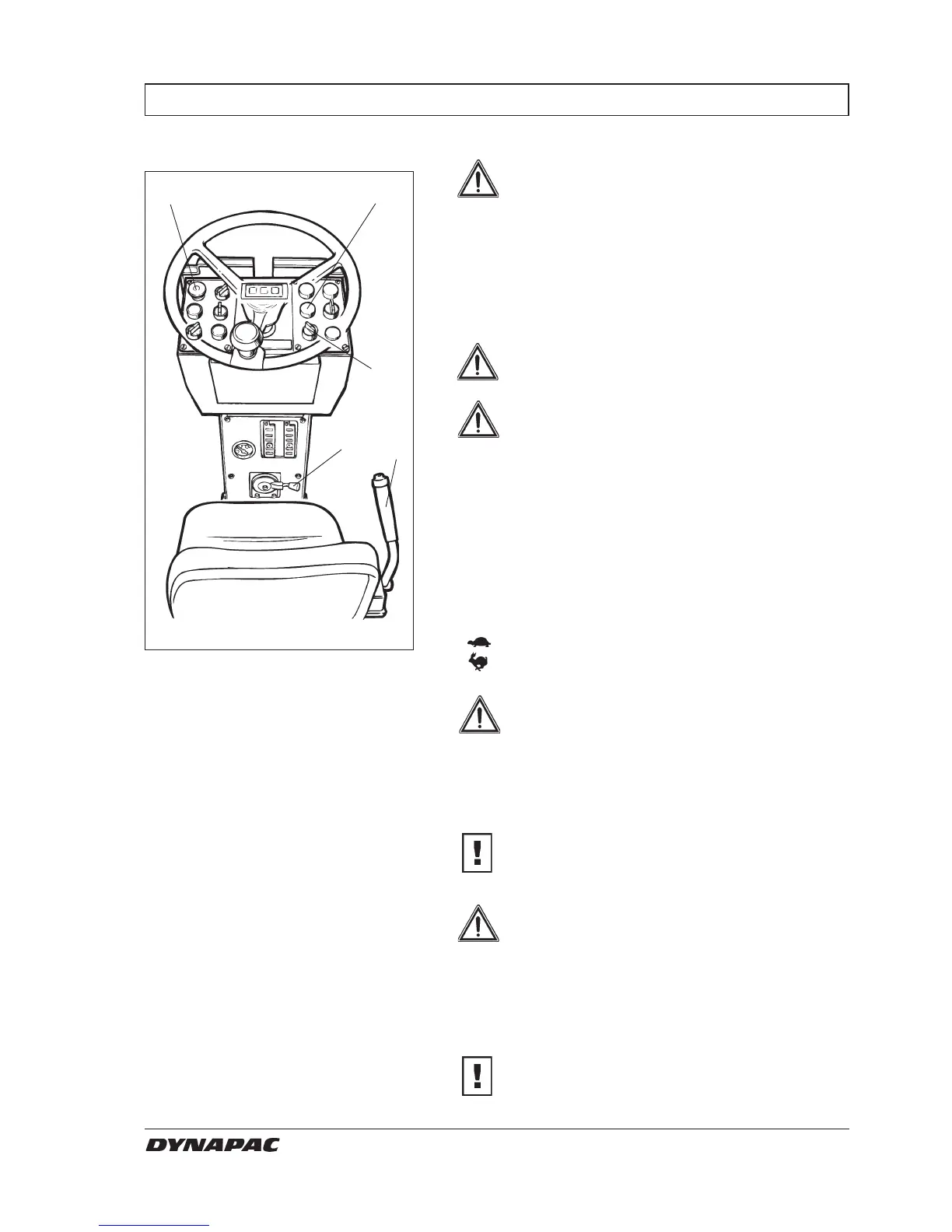

Fig. 16 Instrument panel
5. Reserve/parking brake knob
11. Warning lamp, air filter
14. Speed selector, rear axle
15. Rev control
19. Forward/Reverse lever
Check occasionally while driving that no lamps light. If
the oil pressure lamp lights, stop the roller and the
engine immediately. Check and remedy any fault; see
also the maintenance manual and the engine manual.
If the warning lamp (11) for the air cleaner
lights during operation (at full engine revs), the
main filter must be cleaned or replaced; see
Maintenance Manual.
Set the High/Low speed selector (14) to the desired
mode (optional feature), see decal on the instrument
panel.
The high mode may only be used for trans-
port runs on an even surface.
Carefully move the forward/reverse lever (19) in the
desired direction of travel.
Speed increases as the lever is moved farther from the
neutral position.
Always regulate speed with the forward/
reverse lever and never by changing the
engine speed.
Check operation of the reserve/parking
brake by pressing the reserve/parking
brake knob (5) while the roller is running
slowly forward.
Under no circumstances may the machine
be operated from the outside. The operator
must remain seated inside the machine
during all operation.
WARNING
WARNING
WARNING
WARNING
CAUTION
CAUTION
Max-speeds, km/h (mph)
Std/P D PD
7,5 (4.7) 5 (3.1) 5 (3.1)
Dualspeed, rear axle
Std/P D PD
7,5 (4.7) 5 (3.1) 5 (3.1)
18,5 (11.5) 9 (5.6) 9 (5.6)
