14
CA 150 O150EN2

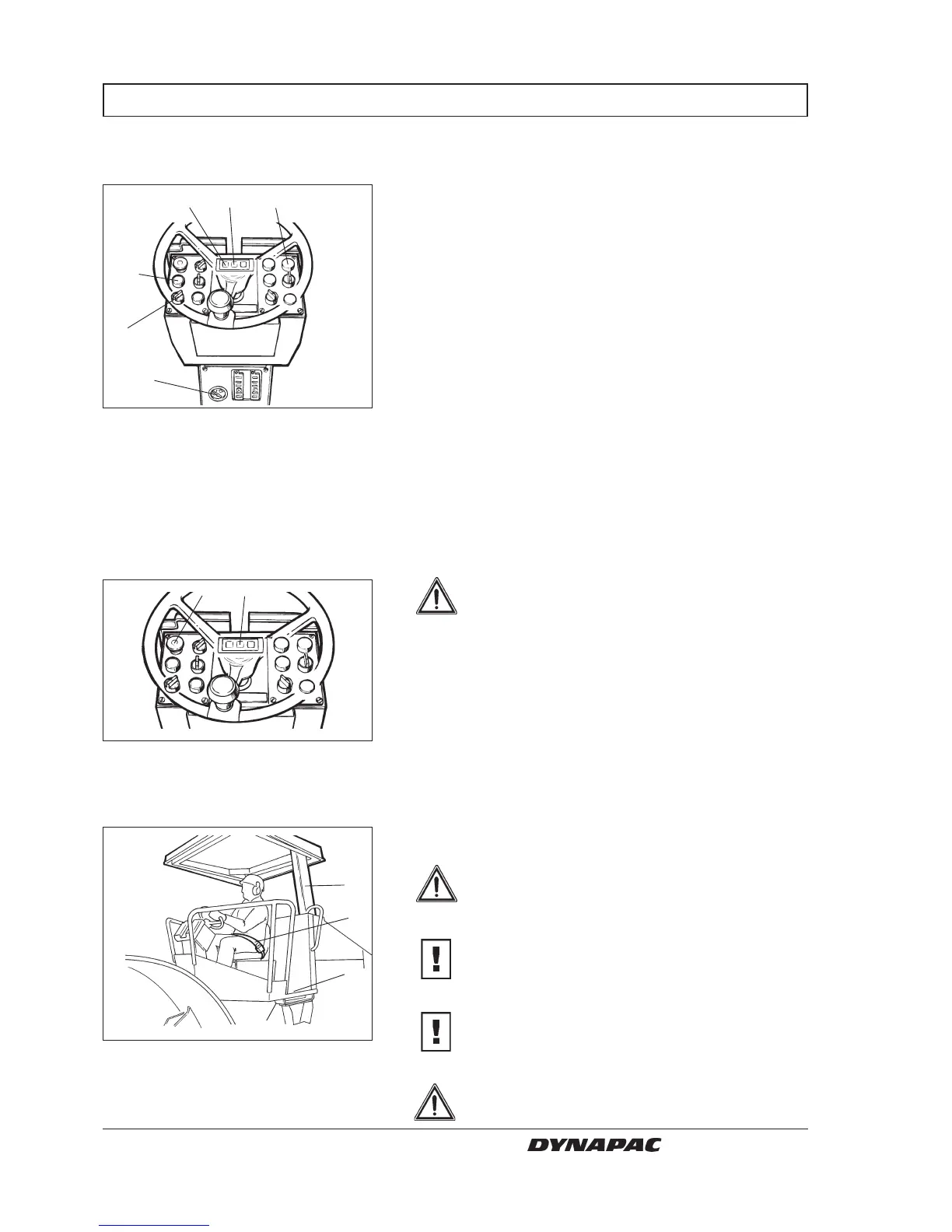

BEFORE STARTING
1
2
3
4
7812
20
2
16
58
Turn the starter switch (2) to position I. Press the
button (20) and make sure that all the control lamps
light.
Check that the fuel gauge (16) gives a reading.
Check that the warning lamps for charging (7), oil
pressure (12), and parking brake (8) light.
Instruments, lamps and
field of view – Check
Reserve/parking brake
– Control
Fig. 12 Control panel
5. Reserve/parking brake knob
8. Brake lamp
Ensure that the reserve/parking brake knob
(5) is pressed down.
If the parking brake is not applied, the
roller may start to roll when you start the
engine on sloping ground.
Fig. 11 Instrument panel
2. Starter switch
7. Charging lamp
8. Brake lamp
12. Oil pressure lamp
16. Fuel gauge
20. Test button for warning lamps
WARNING
Operator’s station
Fig. 13 Operator’s station
1. Seat belt 3. Rubber element
2. ROPS 4. Anti-slip
If the roller is equipped with a ROPS (2) (Roll Over
Protective Structure) or a cab, always use the seat belt
(1) and wear a hard hat.
Replace the seat belt (1) if it shows signs
of wear or has been subjected to severe
force.
Check that the rubber elements (3) on the
platform are intact. Worn elements will impair
comfort.
Ensure that the anti-slip (4) on the platform is
in good condition; replace with new anti-slip if
friction is poor.
CAUTION
WARNING
WARNING
If the machine is fitted with a cab, make sure
that the door is closed when in motion.
CAUTION
