9.1 Changing the tamper foot plate
Only use genuine spare parts when changing the
tamper foot plate to a different width.
Protective equipment:
n
Protective gloves
n
W
orking clothes
1.
Park the machine in secured condition
Ä Chapter 6.4
„Parking the machine in secured condition“ on page 55.
2. Allow the machine to cool down.
3. Lay the machine carefully on the rollers.
4. Unscrew the fastening screws.
5. T
ake off the tamper foot plate and lay the tamper foot on the
floor.
6. Fasten the new tamper foot plate with the fastening screws,
tightening torque:
60 bis 70 Nm (44 bis 52 ft·lbf).
7.
Check the engine speed, readjust if necessary
Ä Chapter
8.9.6 „Checking, adjusting the engine speed“ on page 89.

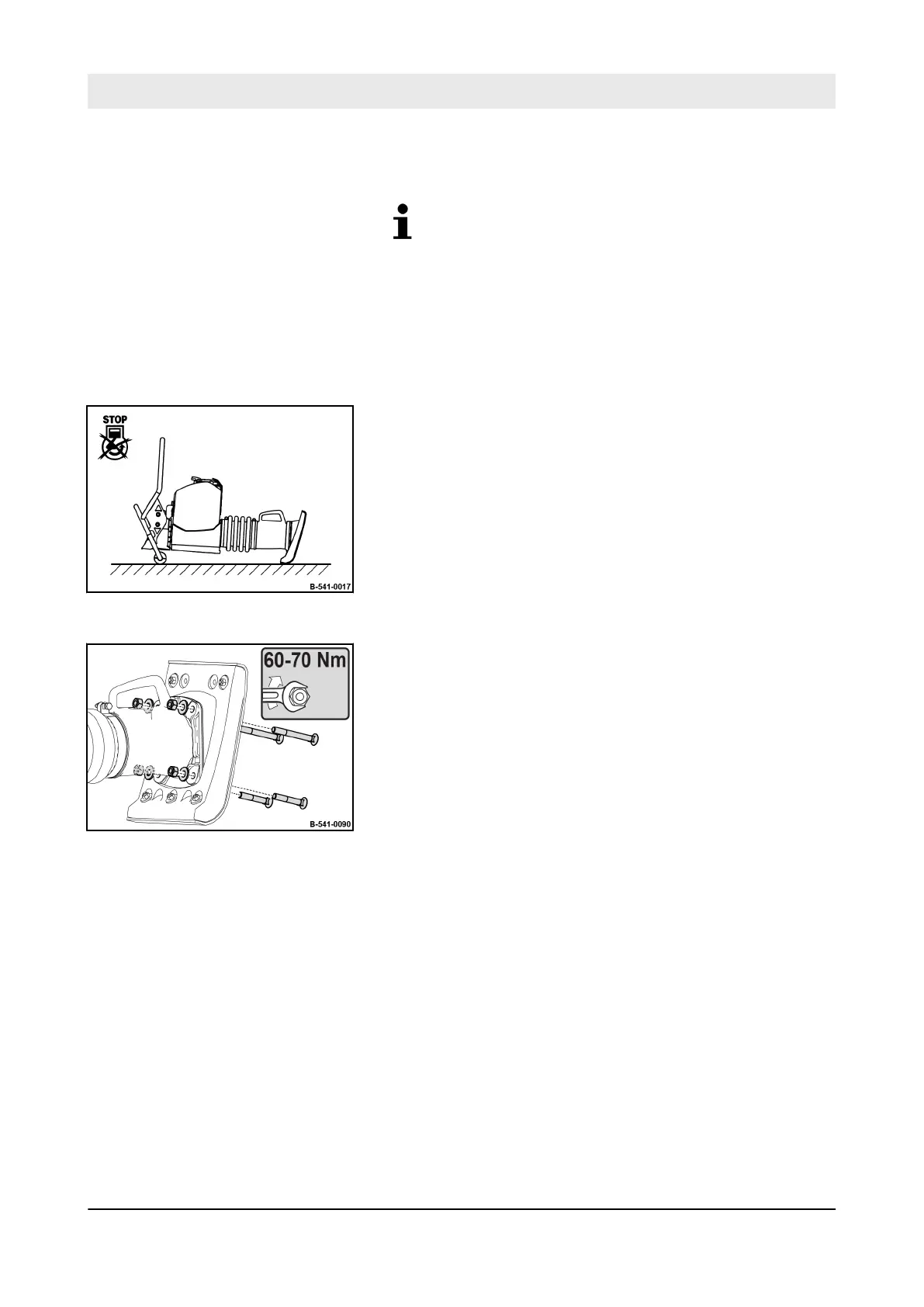

Fig. 118
