8.9.8 Changing the oil in the tamper foot
NOTICE!
Components may get damaged!
– Drain tamper foot oil only at operating tempera-
ture.
–
Ensure strict cleanliness.
– Use only tamper oil of the permitted specifica-
tion.
– Filling quantity:
Ä
Chapter 8.3 „List of fuels and
lubricants“ on page 67.
Protective equipment:
n
W
orking clothes
n
Safety shoes
n
Protective gloves
WARNING!
Danger of burning on hot components!
– Wear your personal protective equipment (pro-
tective gloves, protective clothing).
–
Avoid touching hot components.
1.
Park the machine safely
Ä
Chapter 6.4 „Parking the machine
in secured condition“ on page 55.
2. Clean the area around filler and drain plug.
3. Unscrew the drain plug, tilt the machine backward and collect
running out oil.
4. Stand the tamper on its foot again and secure it against tip-
ping over
.
5. Clean the drain plug and screw it in with sealing agent (low-
strength, e.g. spare parts number DL 009 700 16
).
4 Screw M6x18

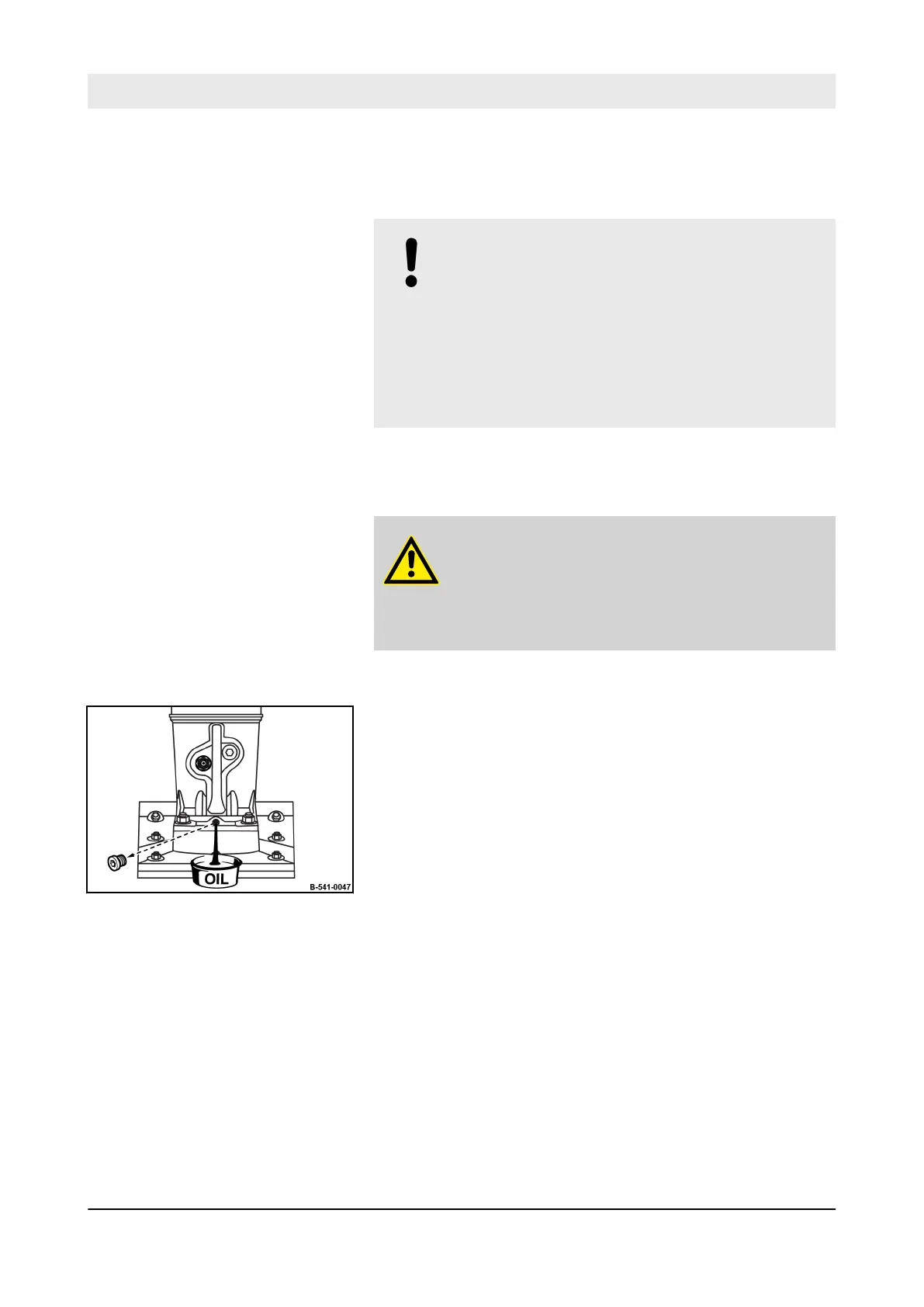

Fig. 112
Maintenance – Annually
DR6X
94
