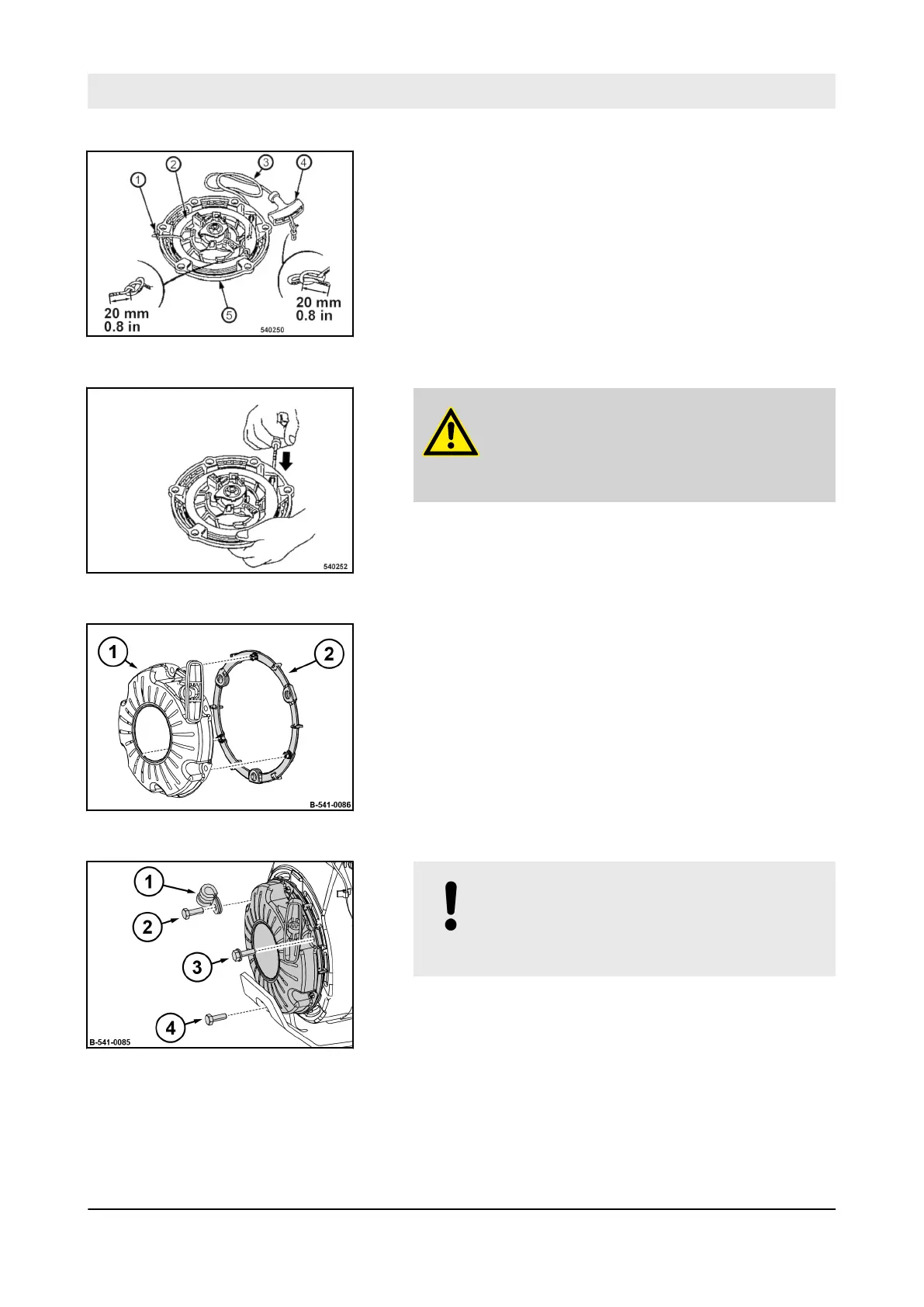

6. Secure the coil against winding up. For this purpose tie the
coil (2) to the housing (5) with a cable strap (1).
7. Untie the knots of the starter rope at both ends and remove
the old starter rope.
8. Thread in the new starter rope (3) and fix it with knots on
both ends.
9.
CAUTION!
Danger of injury caused by the starter
handle hitting against your body!
– Do not let the starter handle hit back.
Remove the fixing of the coil and run the starter handle
slowly back to initial position.
10. Pull the starter handle to check the function and light move-
ment of the recoil starter.
11. Clip in the spacer ring (2) on the recoil starter (1).
12.
NOTICE!
The recoil starter may get damaged!
– Do not mix up the fastening screws for
the recoil starter by mistake.
Assemble the recoil starter.
Fig. 108
Fig. 109
Fig. 110
Fig. 111
1 Pipe clamp
2 Screw M6x18
3 Screw M6x14
Maintenance – Annually
DR6X
93
