6.1 Adjusting the guide handle

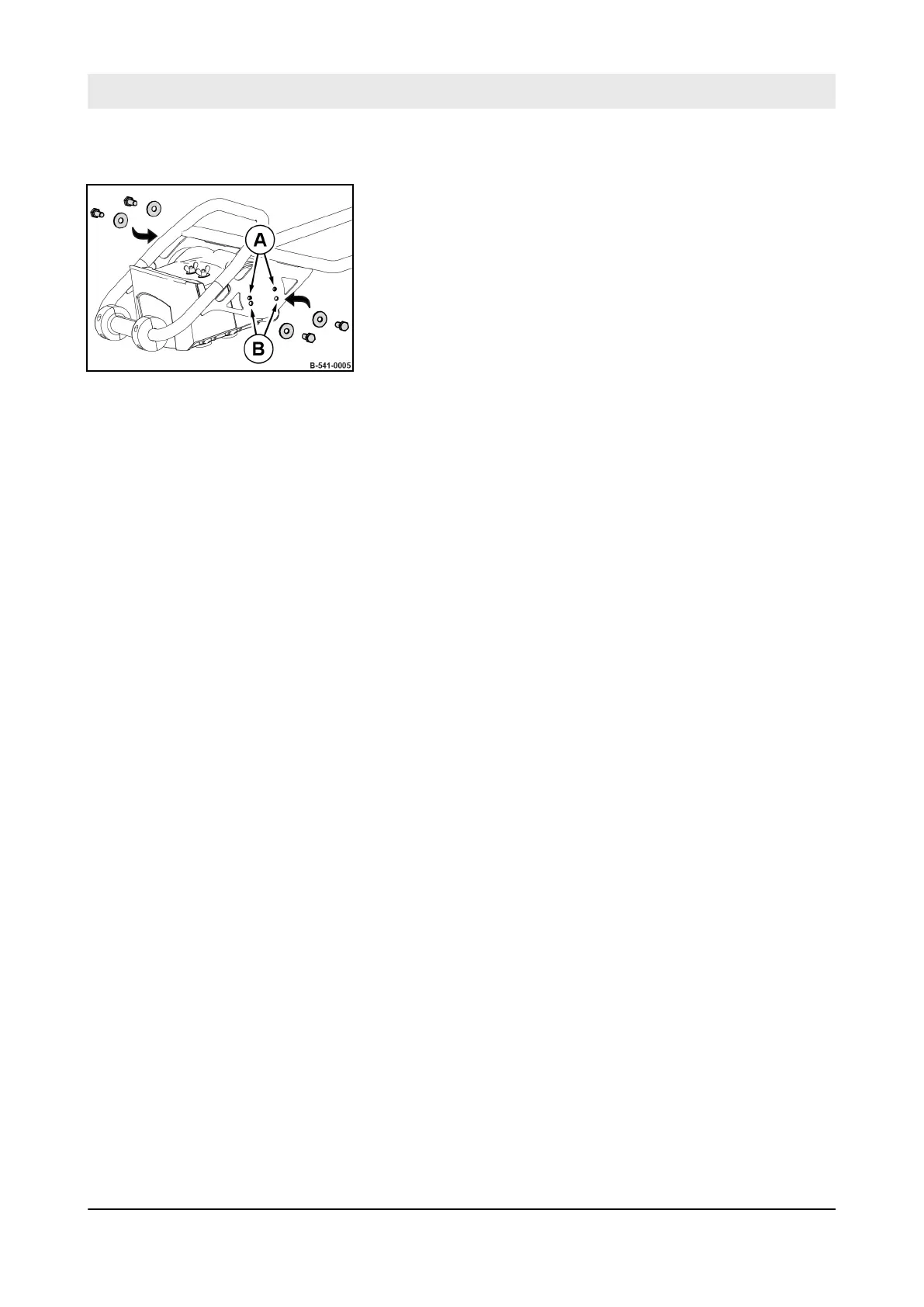

Adjust the guide handle to the size of the operator using bores (A)
and (B):
(A) - Lower guide handle position
(B) - Upper guide handle position
1.
Park the machine in secured condition
Ä Chapter 6.4
„Parking the machine in secured condition“ on page 55.
2. Disassemble the fastening screws and washers on both
sides.
3. Set the steering bow to the desired height.
4. Assemble the fastening screws and washers on both sides.
Fig. 21
Operation – Adjusting the guide handle
