8.9.7 Replacing the starter rope
Protective equipment:
n
W
orking clothes
n
Protective gloves
1.
Park the machine in secured condition
Ä Chapter 6.4
„Parking the machine in secured condition“ on page 55.
2. Allow the engine to cool down.
3. Disassembling the recoil starter
.
4. Pull the starter rope with the starter handle out completely
.
5. If the starter rope has been torn or the coil has recoiled com-
pletely:
n Before assembling the rope, turn the coil (2) 5 revolutions
in anti-clockwise direction and align the rope openings in
coil and housing (5) to one another (A).

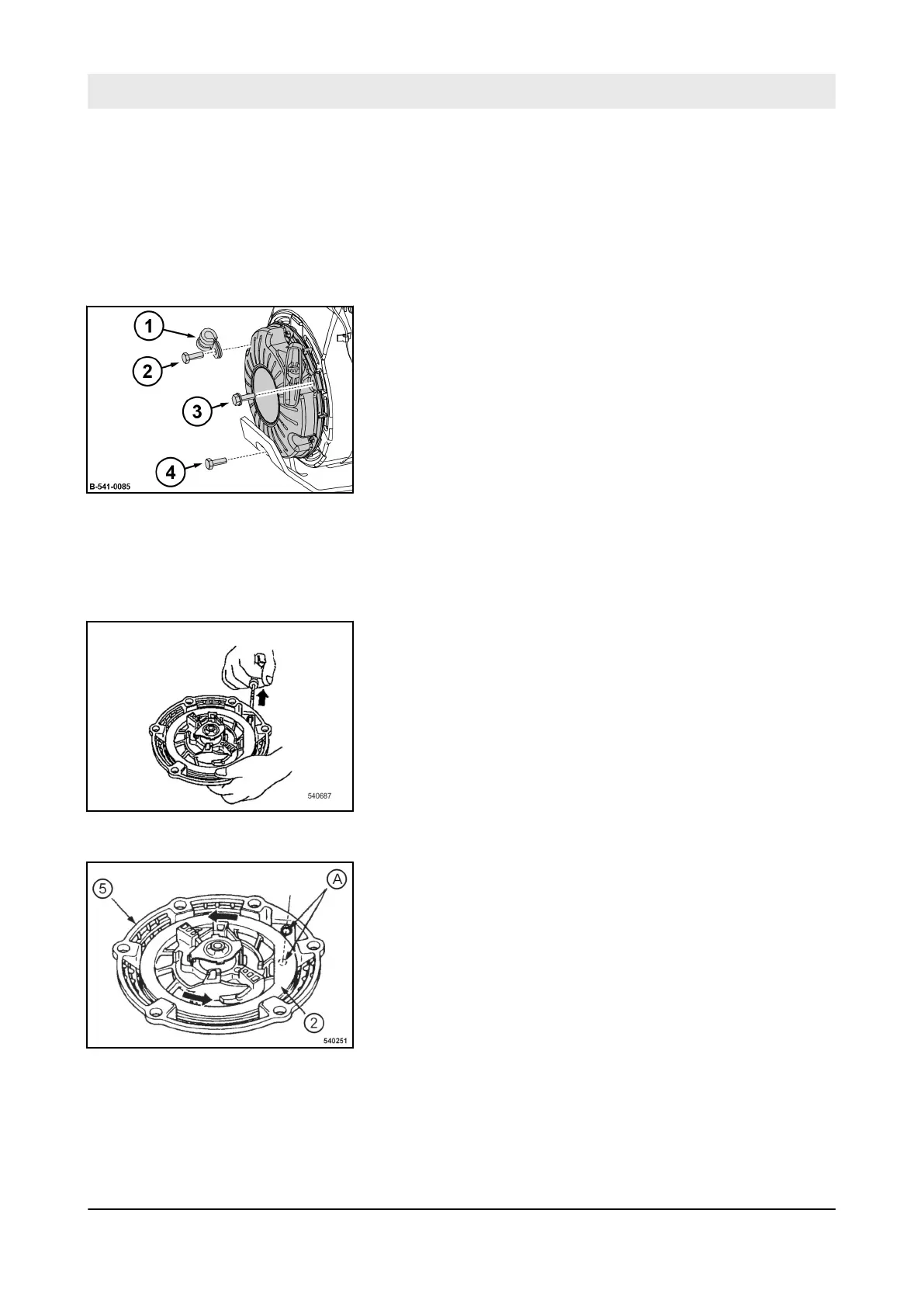

Fig. 105
1 Pipe clamp
2 Screw M6x18
3 Screw M6x14
4 Screw M6x18
Fig. 106
Fig. 107
