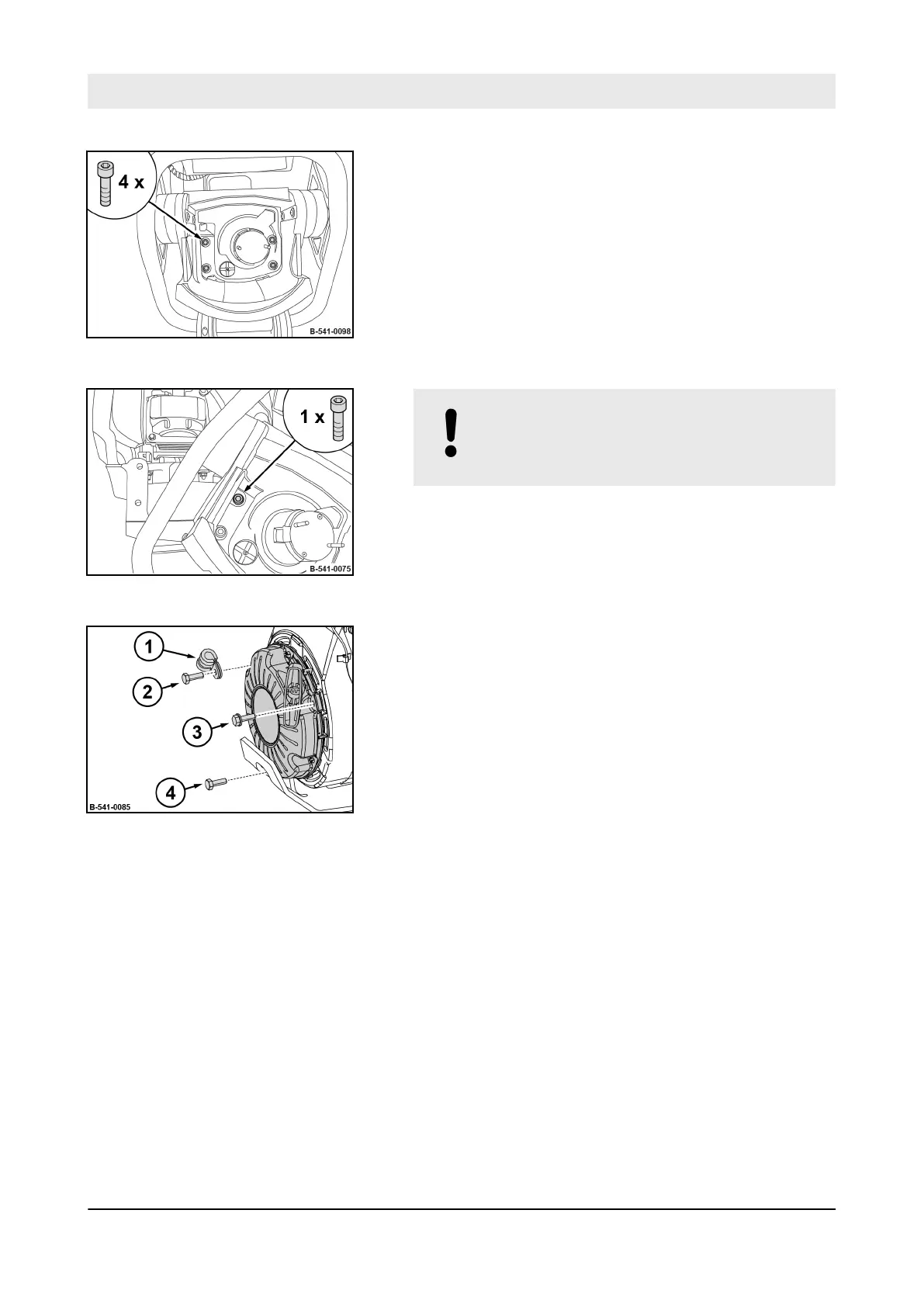

5. Disassemble the guide handle fastening screws.
6.
NOTICE!
Components may get damaged!
– Do not tear off any hoses or cables.
Remove the guide handle and secure it to the housing with a
fastening screw
.
Tighten the fastening screw hand-tight.
7. Disassemble the recoil starter
.
Fig. 62
Fig. 63
Fig. 64
1 Pipe clamp
2 Screw M6x18
3 Screw M6x14
4 Screw M6x18
