8. Install the new fuel filter (2) by observing the flow direction.
9. Tighten the fastening screw (3), tightening torque: 10 Nm
(7.4 ft·lbf).
10. Connect the lower fuel hoses to the fuel filter with hose clamp
(4).
11. Open the fuel valve (engine stop switch in position “ON”),
until the fuel filter is filled with fuel.
12. Close the fuel valve (engine stop switch in position “OFF”).
13. Connect the upper fuel hose to the fuel filter with the hose
clamp (1).
14. Assemble the left engine guard.
15. Dispose of fuel and fuel filters in line with environmental reg-
ulations.

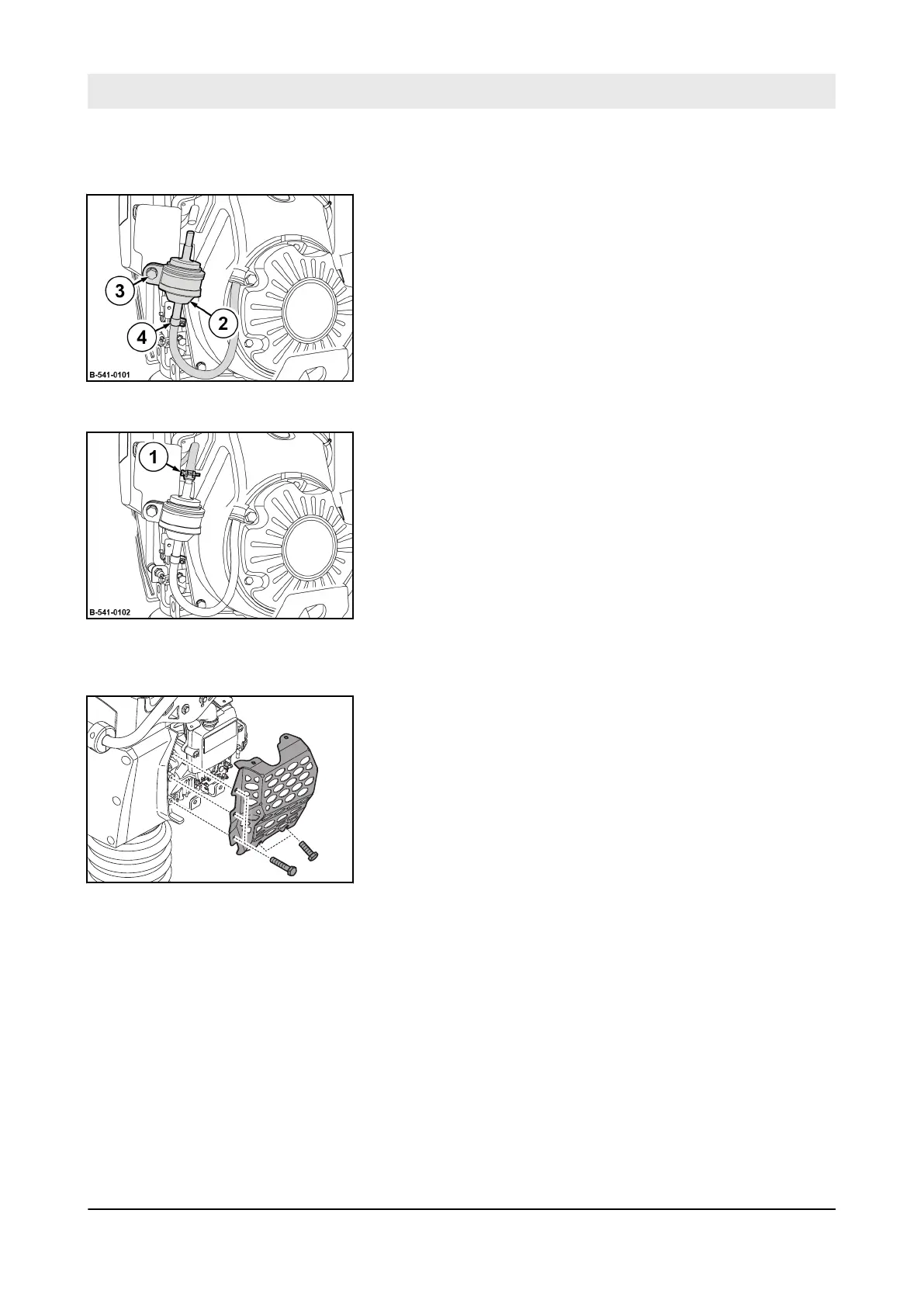

Assembling the fuel filter and filling
it with fuel
Fig. 82
Fig. 83
Concluding work
Fig. 84
