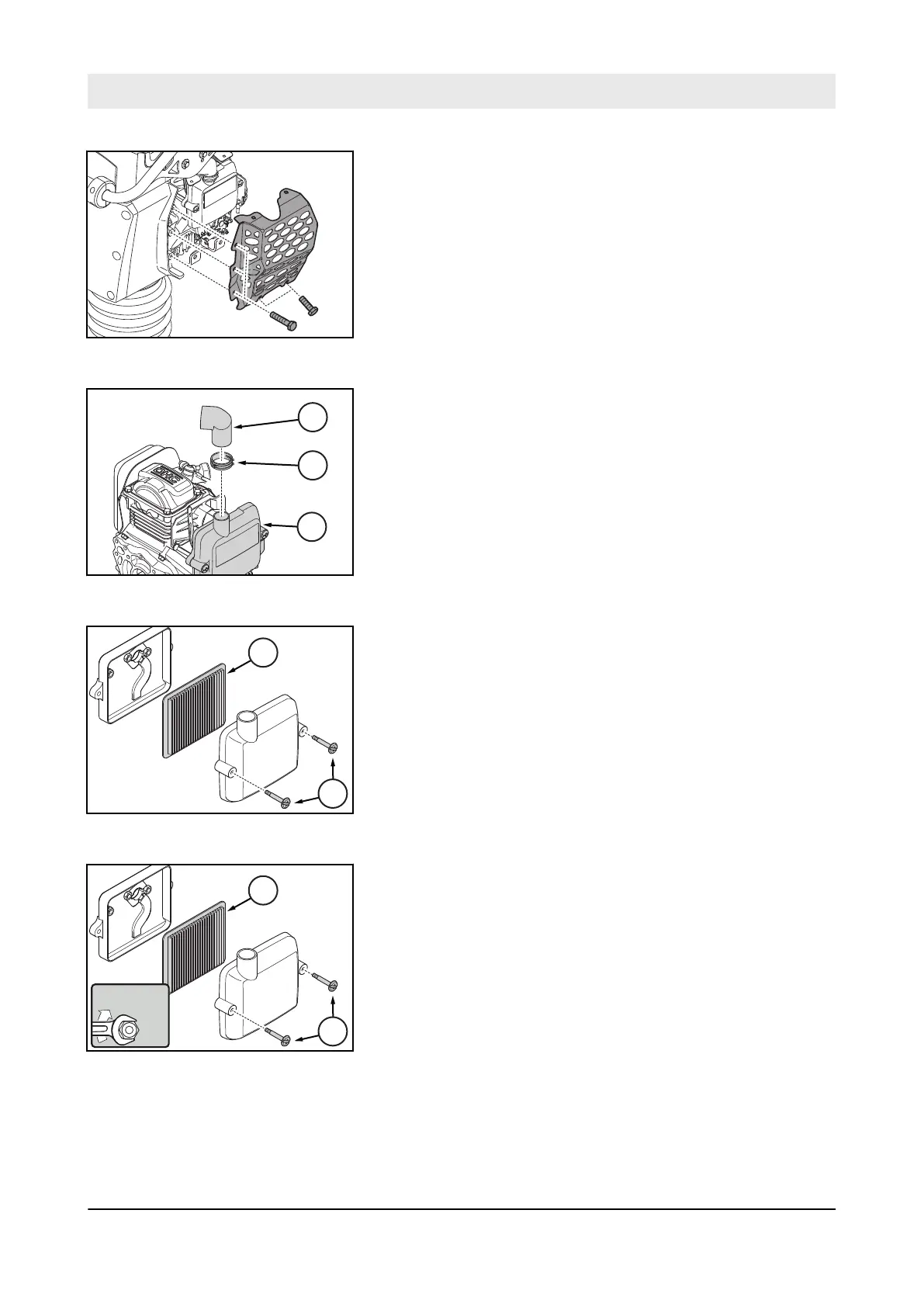

7. Disassemble the left engine guard.
8. Pull the air feed hose (1) and the hose clamp (2) off the cover
(3).
9. Unscrew the fastening screws (1).
10. Disassemble the cover and air filter (2).
11. Wipe the inside of the air filter housing with a clean cloth.
12. Replace the air filter
.
13. Slide the air filter (2) carefully into the housing.
14. Assemble the cover with fastening screws (1), tightening
torque: 3 Nm (2 ft·lbf).
B-924-0008
Fig. 93
1
3
2
B-541-0072
Fig. 94
1
2
B-541-0081
Fig. 95
1
2
B-541-0097
3 Nm
