EMS Main Pages
Available in 1/3 and 2/3 formats

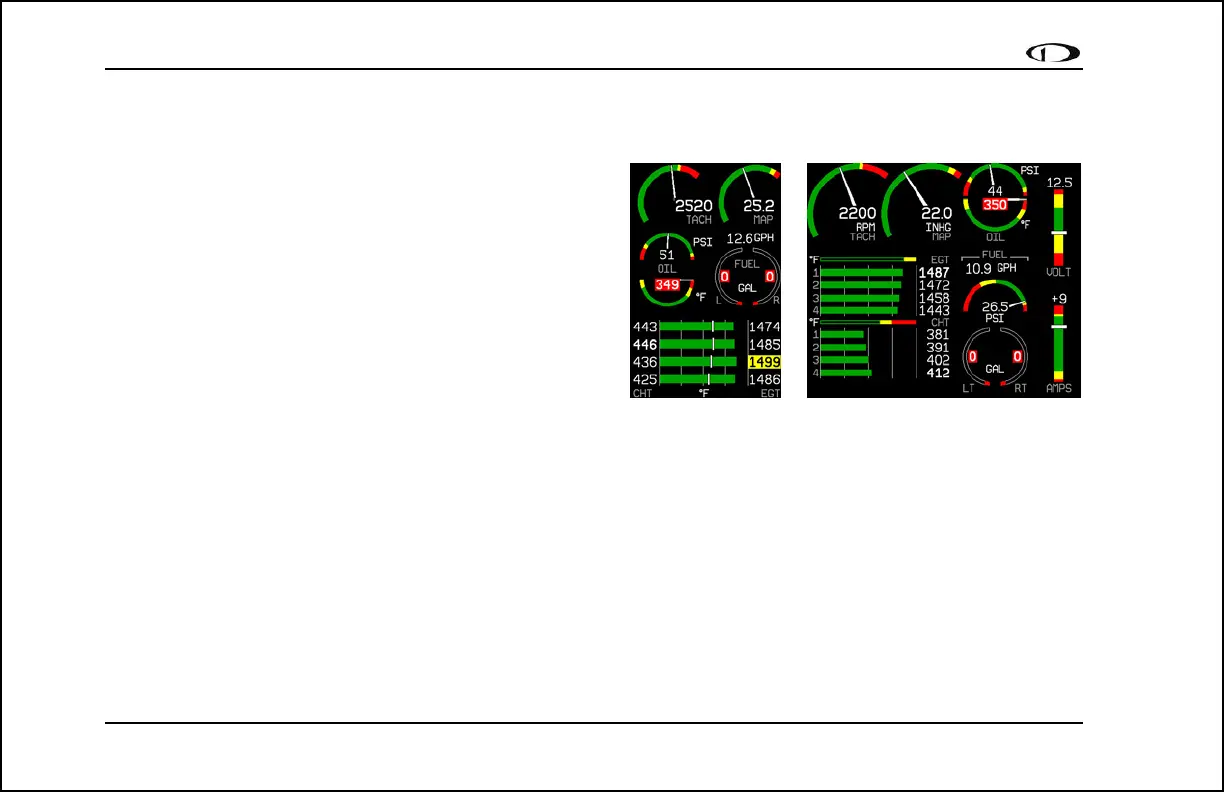

This page displays RPM, manifold pressure (MAP), oil
temperature, oil pressure, exhaust gas temperature (EGT),
cylinder head temperature (CHT), fuel level, fuel pressure and
fuel flow. On the 2/3 page version, up to two user-
configurable info bars may be displayed. For information on
configuring the function of these info items, see the EMS
Operation section on page 10-1.
Up to six EGT/CHT channels may be displayed
simultaneously. Green horizontal bars depict exhaust gas
temperatures with their respective values to the right of the
bars. In the combined EGT/CHT display, cylinder head temperatures are denoted by the white vertical tic marks
overlaying the EGT bars with their respective numeric values to the left of the bars. In the split EGT/CHT display (two
and four cylinder engines only) CHTs are displayed using their own set of green bars on a different scale than EGTs with
their respective numeric values displayed to the right of each bar. When displayed as a 1/3 page, with the exception of
two cylinder engines, the EGT/CHT display is shown in combined mode.
