E-FLITE EFL16575 - Page 14

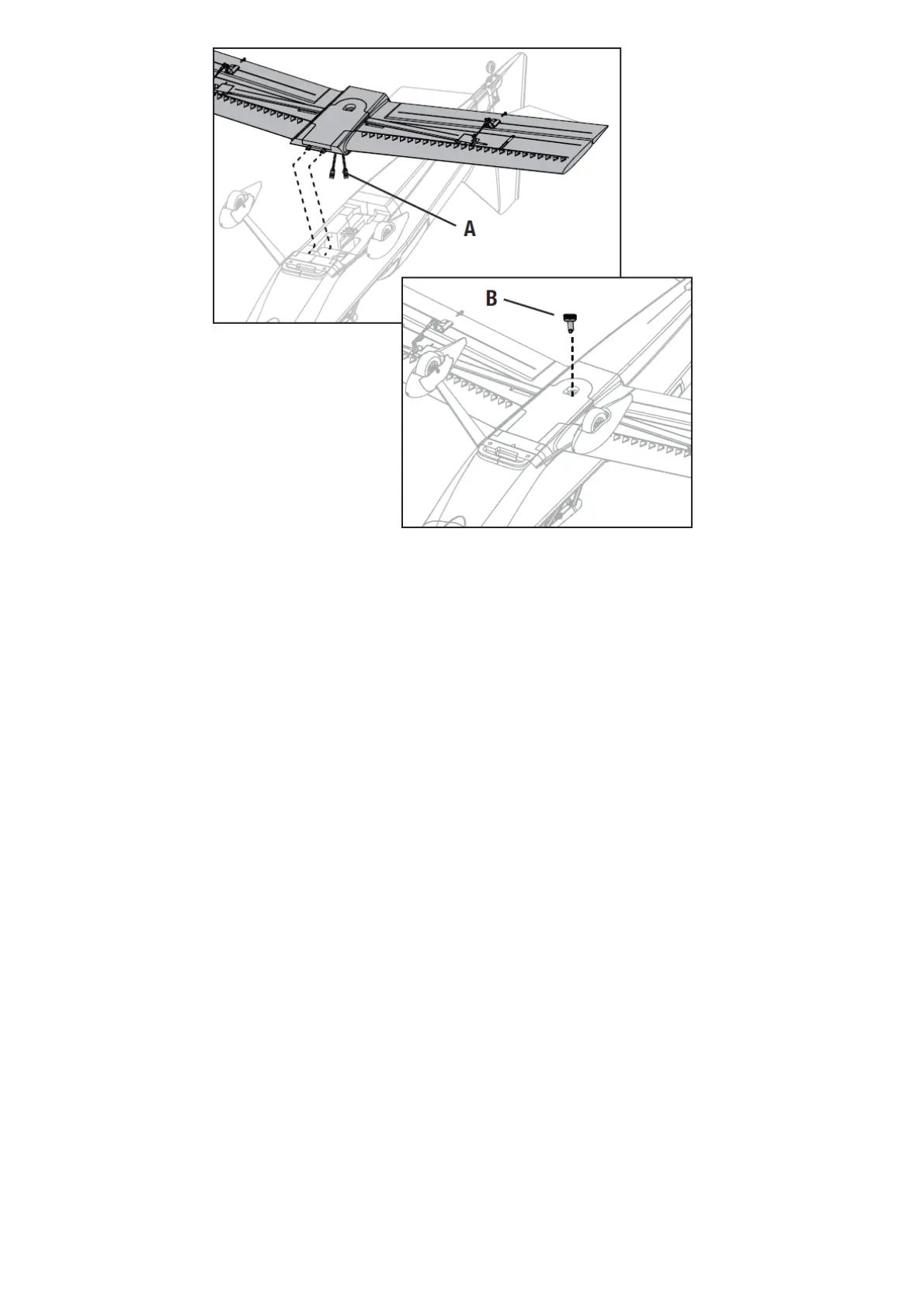

Bottom Wing Installation
1. Connect the aileron servo connectors (A) to the aileron y-harness connectors in the fuselage.
2. Align the bottom wing mounting pins with the fuselage mounting plate to attach the bottom wing to the fuselage.
3. Secure the wing in place with the locking pin (B). Insert pin and turn 90 degrees to lock in place.
Disassemble in reverse order.
