Top Wing Installation

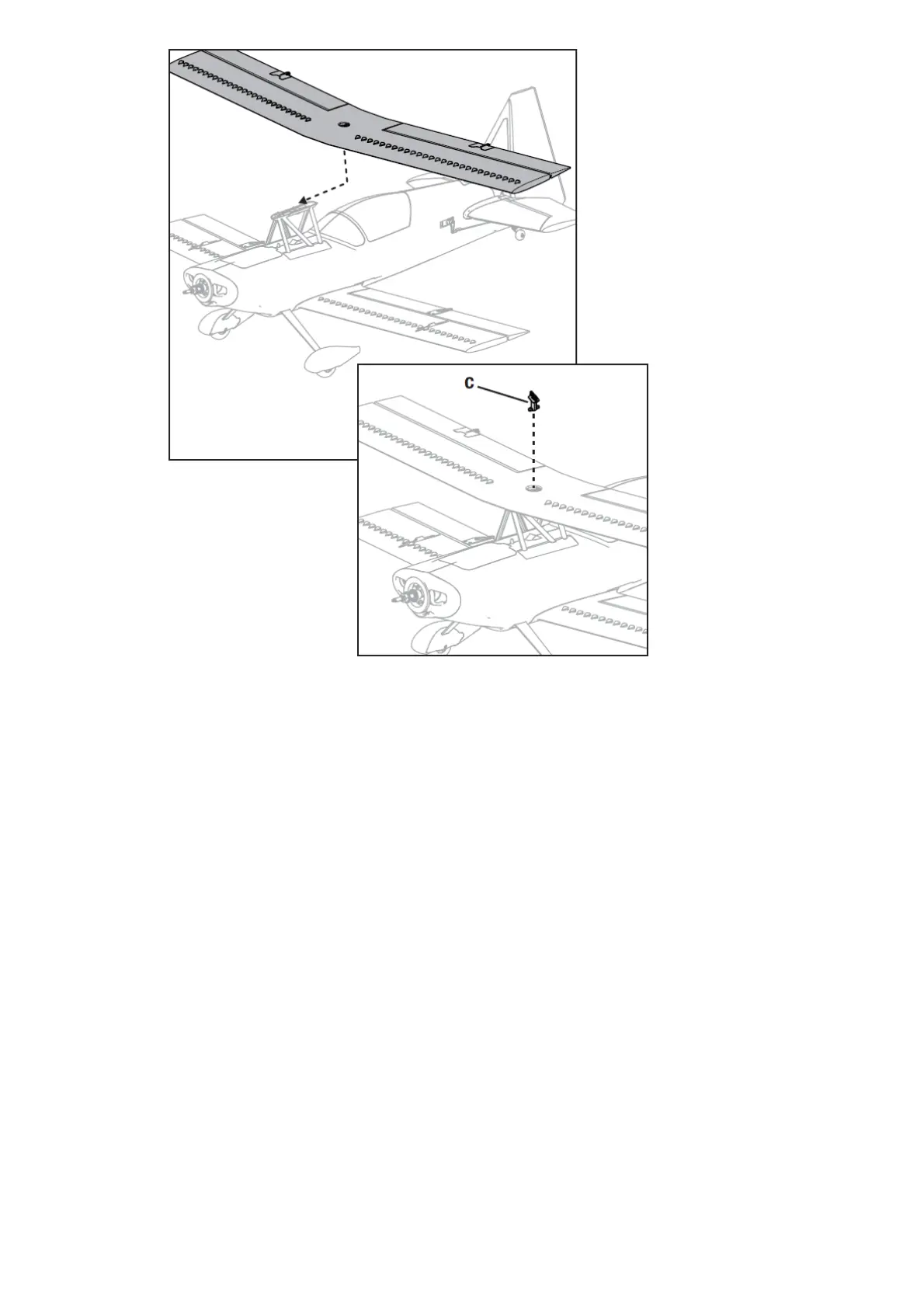

1. Align the top wing with the center mounting post. Slide it into the latch as shown.
2. Secure the wing in place with the locking pin (C). Insert pin and turn 90 degrees to lock in place.
3. Slide the left and right wing strut in place, between the upper and lower wings as shown. Ensure that the arrow indicator on top of the
strut is pointing forward and that the smooth side of the strut faces out.
4. Secure the wing struts to the top and bottom wing with the 4 included pins (A). Ensure that the wing pins are fully seated.
5. Link the upper and lower ailerons by installing the Z-bend end (B) to the lower wing’s aileron control horn.
