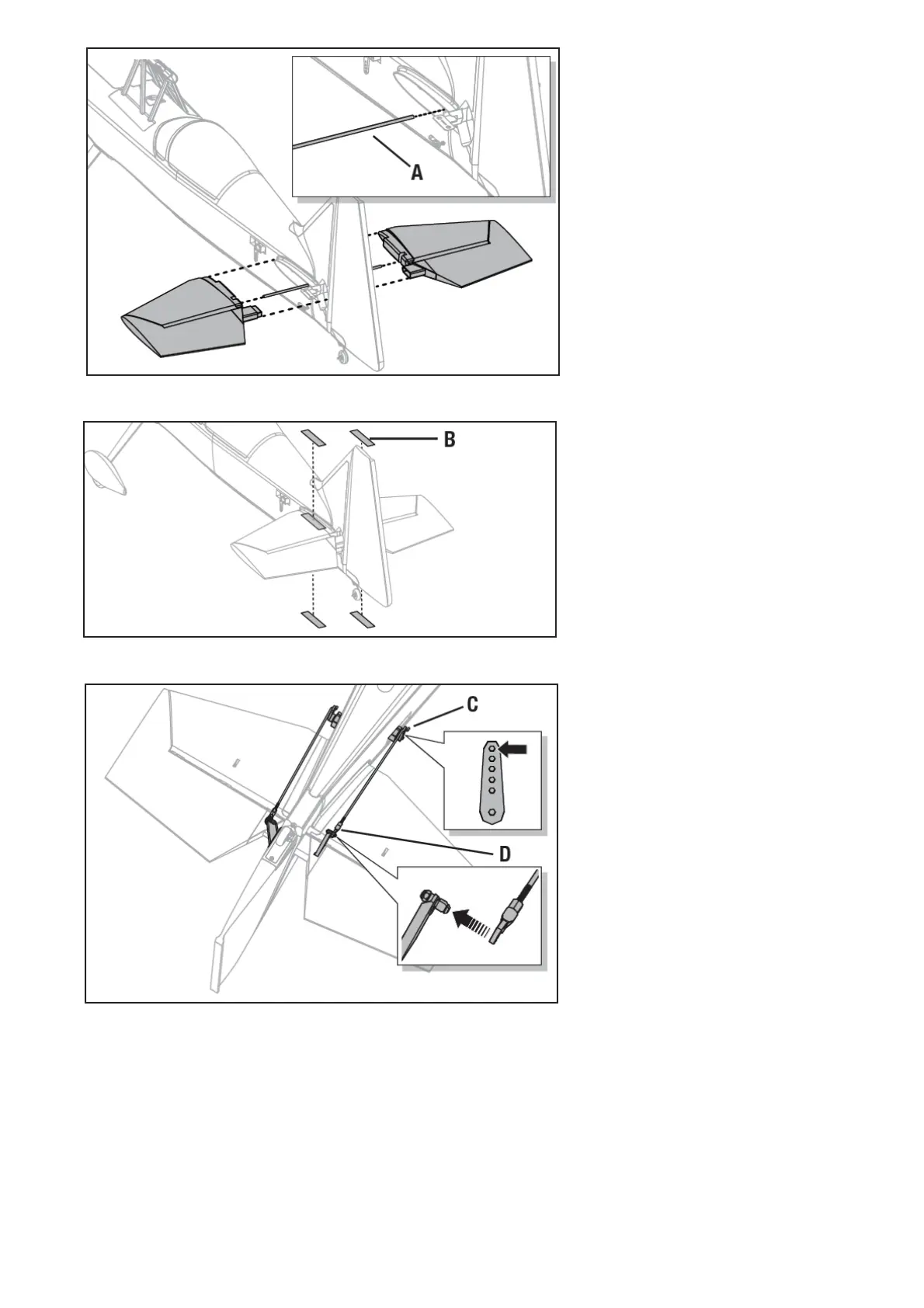

2. Install the 2 piece (left and right) horizontal tail as shown. Ensure the control horn faces down.
3. Secure the 2 piece horizontal tail in place with 4 pieces tape (B) included.
4. Attach the z-bend end of the elevator pushrod (C) to the outermost hole of the servo arm.
5. Connect the ball-link end of the elevator pushrod (D) to the ball on the elevator control horn using ball-link pliers or similar tool.
6. Ensure the elevator and rudder servo arms are in the correct position, then adjust the linkage to center them.
