1. Before installing the bottom wing, position the aircraft so the bottom of the fuselage faces up. If the bottom wing has already been
installed, remove the bottom wing to expose the receiver compartment.
2. Connect the appropriate control surfaces to the their respective ports on the receiver using the table at the right.
3. Using double-sided servo tape,(not included) mount the receiver to the flat area behind the battery compartment, as shown. The
receiver (A) should be mounted in the orientation shown, parallel to the length of the fuselage, with the label visible and the servo ports
facing the rear of the aircraft. The orientation of the receiver is critical for all AS3X® and SAFE® technology setups.
CAUTION: Incorrect installation of the receiver could cause a crash.
Battery Installation and ESC Arming
Battery Selection
We recommend the 2200mAh 14.8V 4S 30C Li-Po battery (SPMX22004S30). Refer to the Optional Parts List for other recommended
batteries. If using a battery other than those listed, the battery should be within the range of capacity, dimensions and weight of the
Spektrum Smart Li-Po battery packs to fit in the fuselage. Be sure the model balances at the recommended CG.
1. Lower the throttle to the lowest settings. Power on the transmitter, then wait 5 seconds.

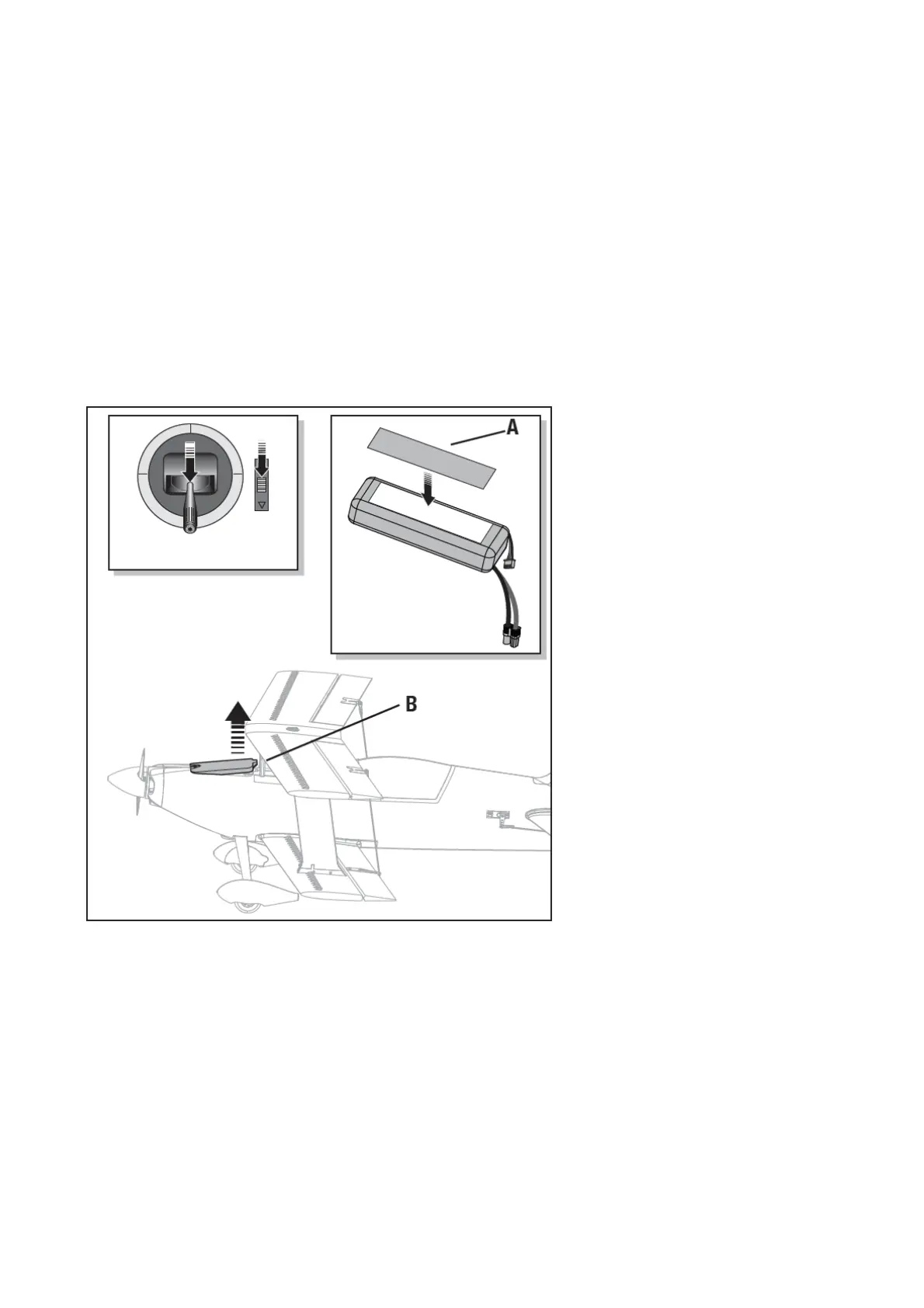

2. For added security apply the loop side (soft side) of the optional hook and loop tape (A) to the bottom of your battery and the hook side
to the battery tray.
3. Press the battery latch button (B) to remove the battery hatch.
4. Install the fully charged battery (C) in the battery compartment as shown. See the Adjusting the Center of Gravity instructions for more
information.
5. Make sure the flight battery is secured using the hook and loop straps (D).
