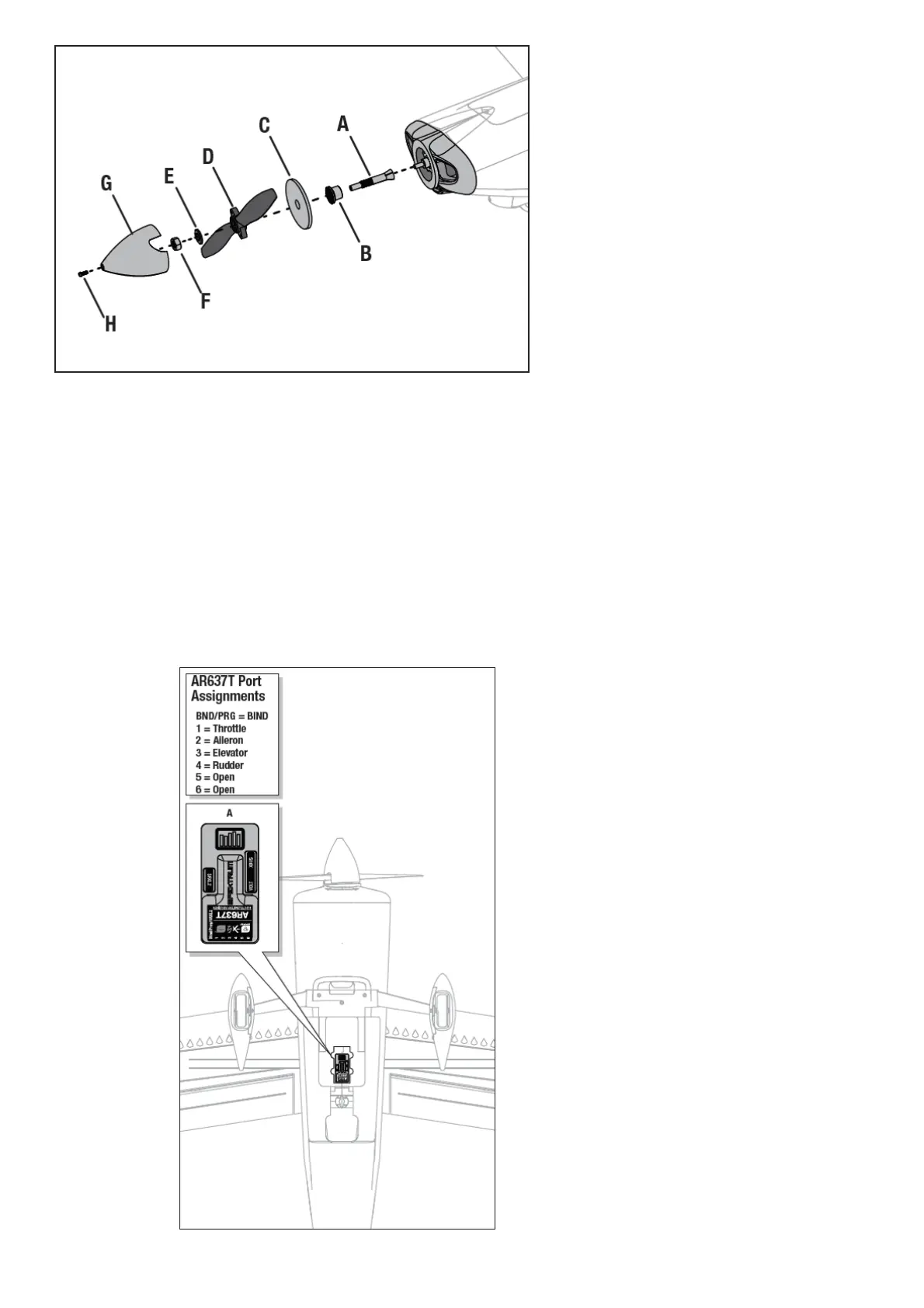

1. Slide the collet (A), backplate (B), spinner backplate (C) and the propeller (D) on the motor shaft. Ensure the propeller size (11 X 6.6)
faces forward.
2. Slide the washer (E) on the propeller shaft and tighten the spinner nut (F) with an adjustable wrench to secure the propeller into place.
3. Slide the spinner (G) on the propeller shaft in front of the propeller.
4. Secure the spinner with the spinner screw 3 x 8mm (H).
NOTICE: Ensure the propeller is secure using an adjustable wrench before securing the spinner
Motor Shaft Diameter: 5mm
Collet thread size: 6mm
PNP Receiver Selection and Installation
The recommended receiver for this aircraft is the Spektrum AR637T. If you choose to install a different receiver, ensure that it is at least a 6-
channel full range receiver. Refer to the manual of your chosen receiver for correct installation and operation instructions.
AR637T Installation
