33
sure to leave enough slack in the cables to allow tilting or swiveling the
unit. If you choose to fill in the hole, be sure to position the cables
against the rear edge of the hole as you apply the fill material.

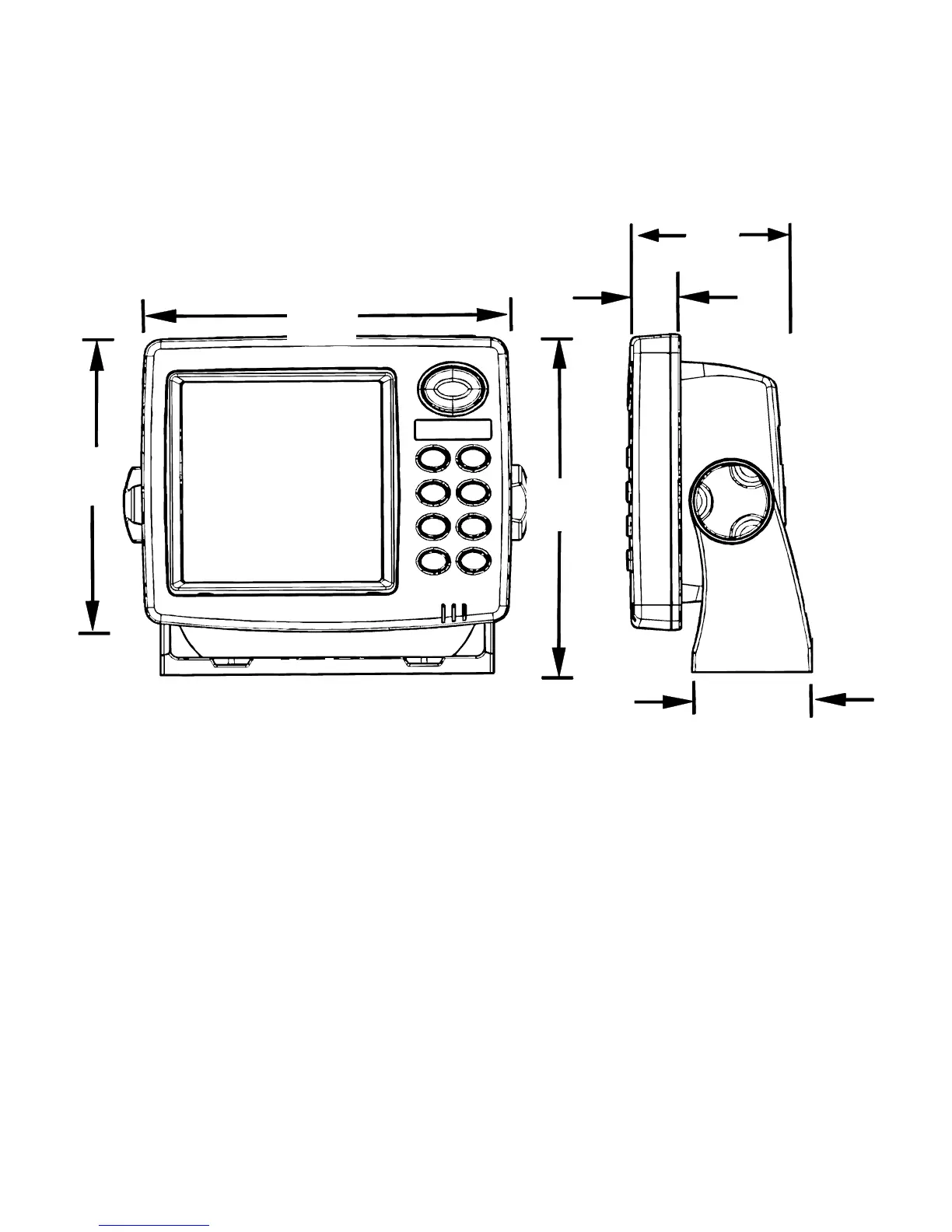

Front view (left) and side view (right) showing dimensions of the
sonar unit when mounted on gimbal bracket.
Before positioning the bracket, be sure to hold the cables against the
rear edge of the hole. Then, slide the bracket over the hole and butt the
rear of the bracket base firmly against the cables, thus pinning them in
place against the side of the hole. Finally, fasten the bracket to the
dash. Attach the unit to the gimbal bracket using the supplied gimbal
knobs and washers.
Millimeter
[Inch]
23.4
[0.92]
72.9
[2.87]
137.9
[5.43]
56.9
[2.24]
157.9
[6.22]
173.9
[6.85]
