In-Dash Installation
You can mount the unit in the dash with an optional FM-5 In-Dash
Adapter Kit. The kit includes mounting hardware, a template for cut-
ting the hole and an instruction sheet, part 988-0147-43.

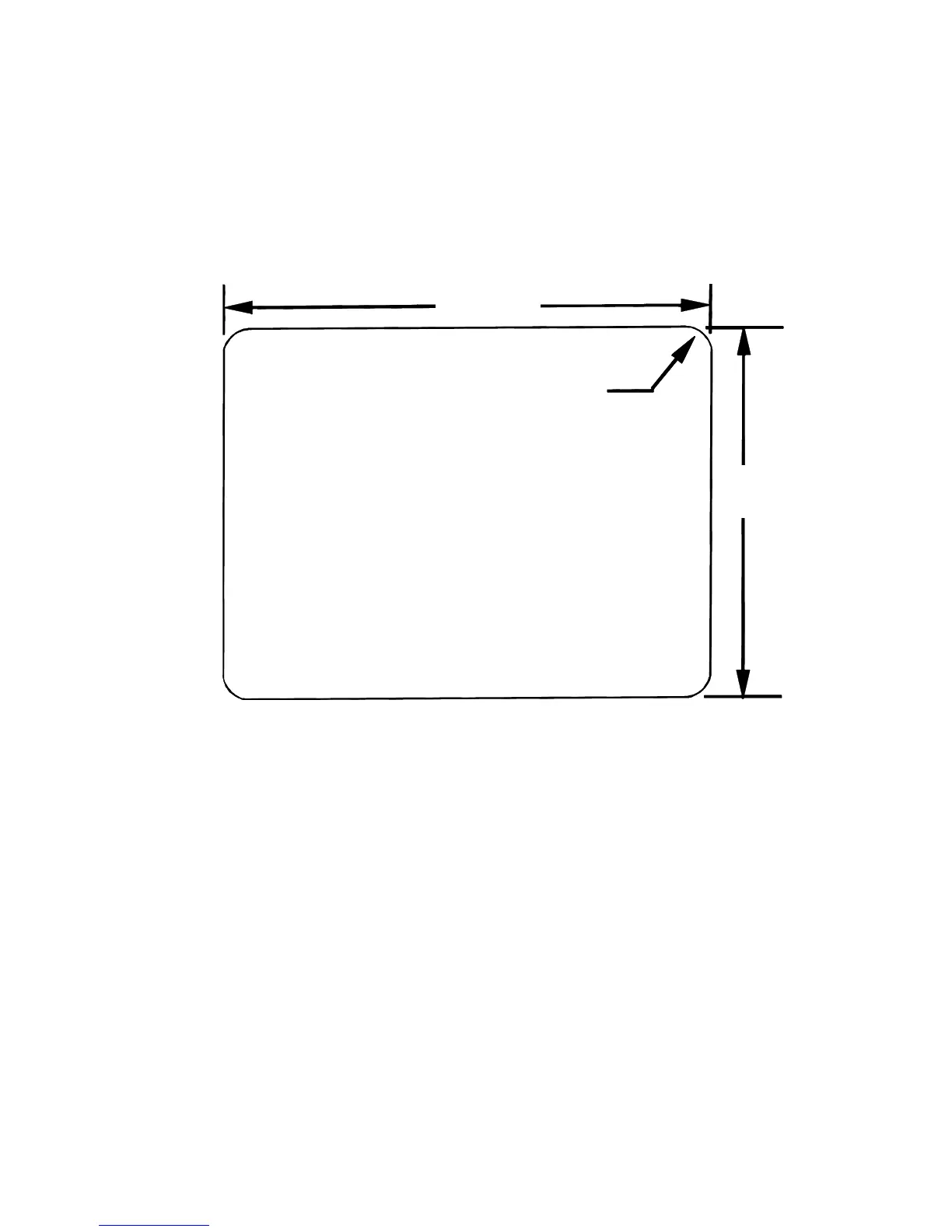

In-dash mounting template for the sonar unit, showing
dimensions. NOTE: The figure above is not printed to scale. A scaled
template (FM-5 In-Dash Adapter Kit instructions) is available for free
download from our web site, www.eaglesonar.com.
Portable Installation
Like many Eagle products, this sonar unit is capable of portable opera-
tion by using an optional portable power pack. The power pack and an
optional portable transducer expand the uses of your sonar unit. The
power pack makes it easy to use the unit on your boat or take it to the
dock, on a float tube, on an ice fishing trip or as a second sonar in a
friend's boat.
113.5
[4.46]
Millimeters
[Inches]
