33..44 TToowweerr IInnssttaallllaattiioonn
Tip If you ordered other UPS accessories, refer to specific user manuals to check the tower installation with
the UPS.

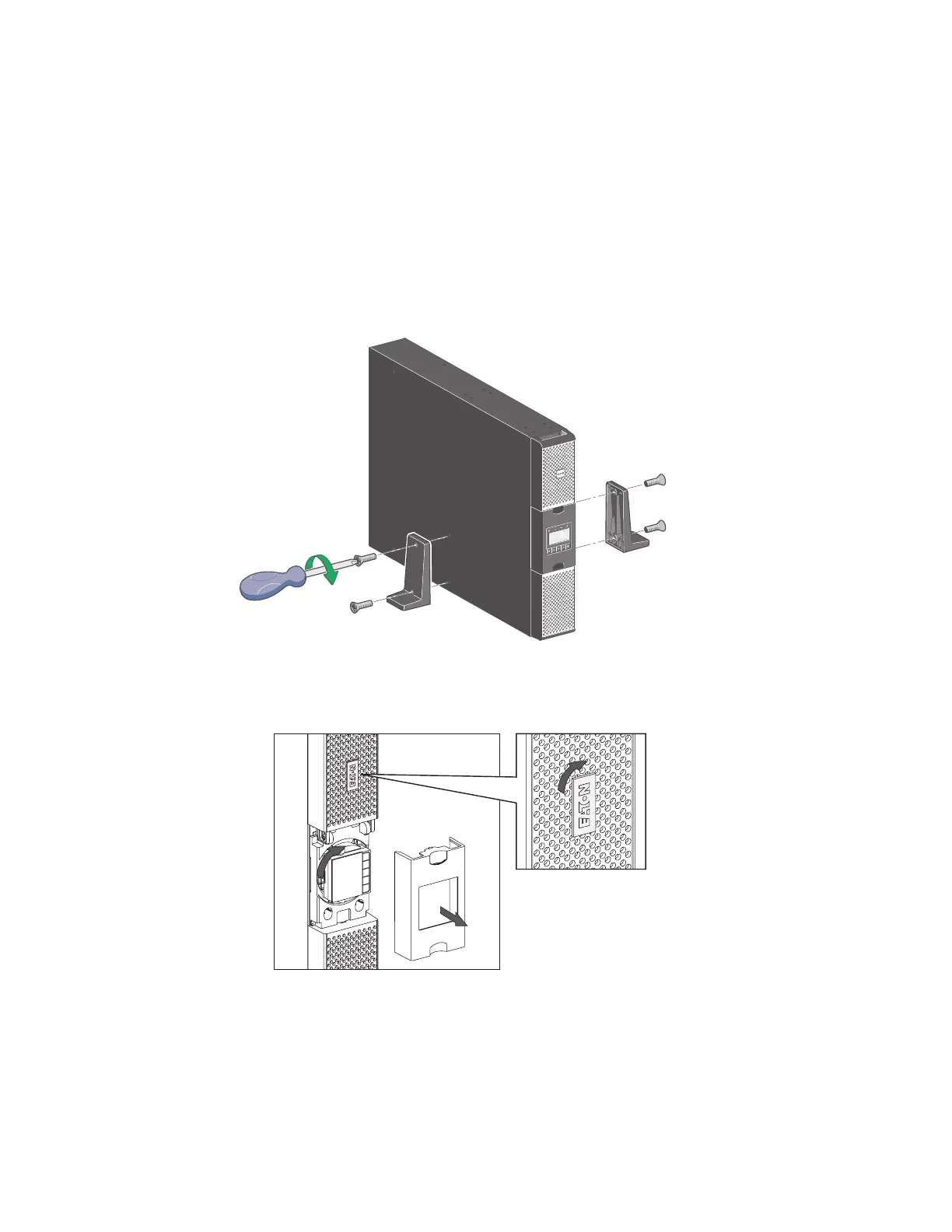

To install the cabinet:
1. Place the UPS on a flat, stable surface in its final location.
2. Always keep 6" or 150 mm of free space behind the UPS rear panel for ventilation.
3. If installing additional cabinets, place them next to the UPS in their final location.
• Adjustment of the orientation of the LCD panel and of the logo.
• Adjustment of the angle of vision of the LCD panel.
Tower Installation
