Eaton 9PX Lithium-Ion - Chapter 2 Presentation; UPS Installation Types and Dimensions

Eaton 9PX Lithium-Ion P-164001006—Rev 01 3
CChhaapptteerr 22 PPrreesseennttaattiioonn
22..11 SSttaannddaarrdd IInnssttaallllaattiioonnss

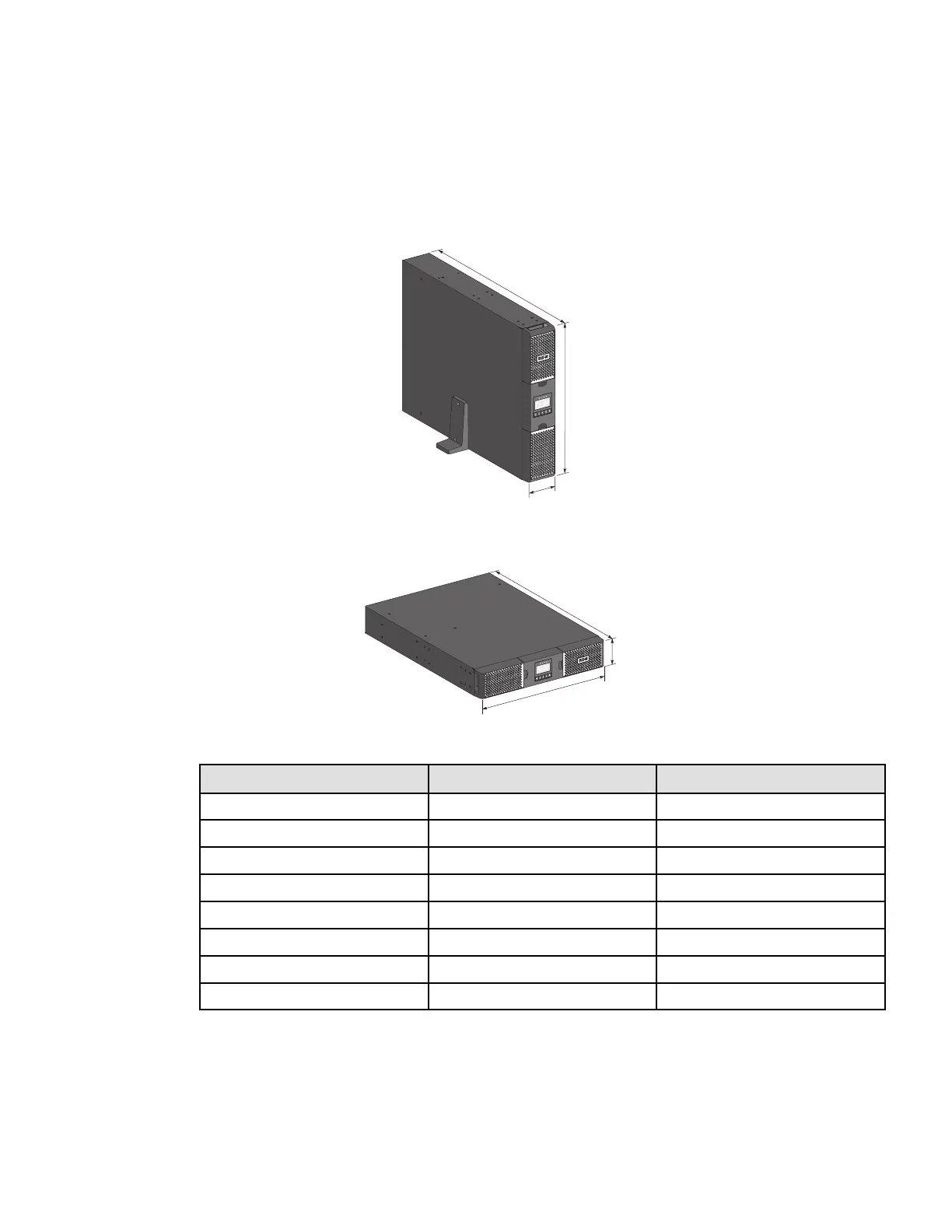

Figure 1. Tower Installation
D
W
H
Figure 2. Rack Installation
D
H
W
Table 2. Weights and Dimensions
Model
Dimensions D x W x H(inch/mm) Weight (lb / kg)
9PX1500RT-L 17.7 x 17.3 x 3.4 / 450 x 440 x 86.5 35.5 / 16.2
9PX2000RT-L 23.8 x 17.3 x 3.4 / 605 x 440 x 86.5 50.6 / 23.0
9PX3000RT-L 23.8 x 17.3 x 3.4 / 605 x 440 x 86.5 52.7 / 24.0
9PX1500GRT-L
17.7 x 17.3 x 3.4 / 450 x 440 x 86.5 34.8 / 15.8
9PX2200GRT-L 23.8 x 17.3 x 3.4 / 605 x 440 x 86.5 48.6 / 22.1
9PX3000GRT-L 23.8 x 17.3 x 3.4 / 605 x 440 x 86.5 50.2 / 22.8
9PXEBM48RT-L 17.6 x 17.2 x 1.7 / 448 x 438 x 42.9 36.5 / 16.6
9PXEBM72RT-L 23.7 x 17.2 x 1.7 / 603 x 438 x 42.9 46.6 / 21.2
