Eaton Fuller AT-1202 - How to Remove the Input Shaft and Drive Gear Assembly

Removal and Disassembly
25
Removal and Disassembly

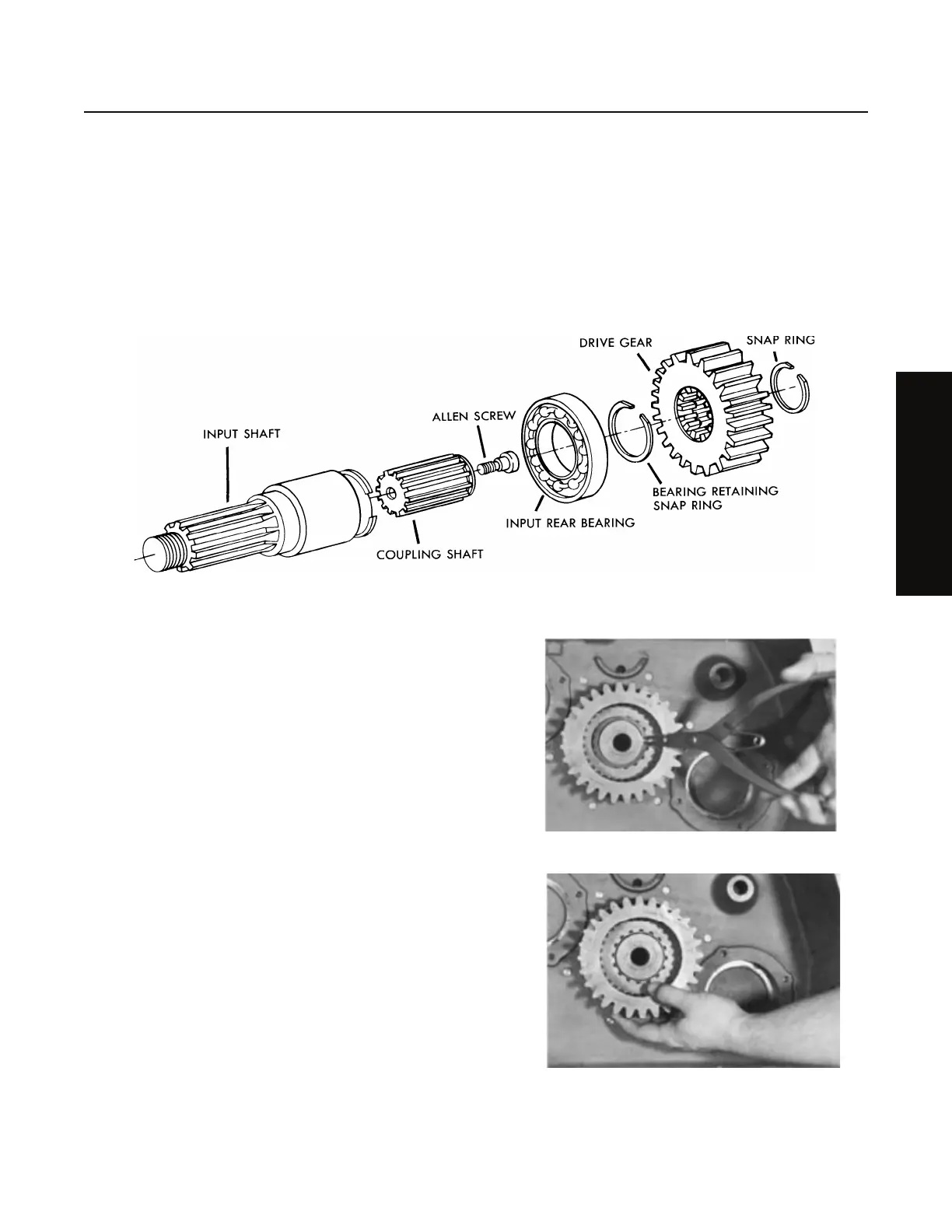

How to Remove the Input Shaft and Drive Gear Assembly
Special Instructions
None
Special Tools
• Typical service tools
Procedure -
1. Remove the snap ring from the groove in the rear of the cou-
pling shaft.
2. Pull the drive gear to the rear and from the splines of the
coupling shaft.
