Eaton Fuller AT-1202 - How to Install the Output Shaft and Rear Bearing Assembly

Assembly and Installation
42
How to Install the Output Shaft and Rear Bearing Assembly
Special Instructions
None
Special Tools
• Typical service tools
Procedure -

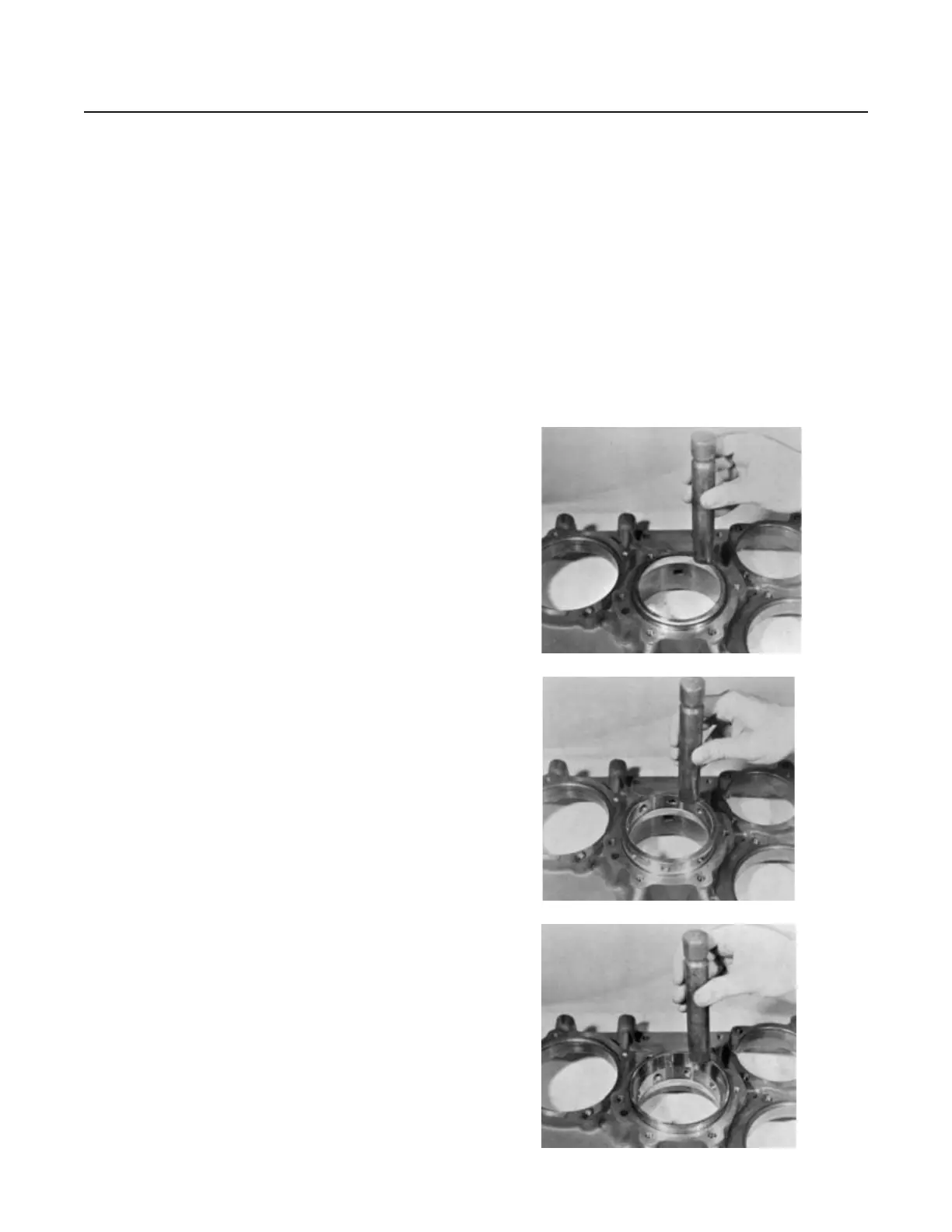

1. Install the bearing front cup in the rear plate bore, taper fac-
ing up.
2. Place the bearing outer spacer on the front cup and tap even-
ly into the rear plate bore.
3. Place the bearing rear cup on the outer spacer and tap evenly
into the bore until the rear cup lip seats against the plate.
