Assembly and Installation

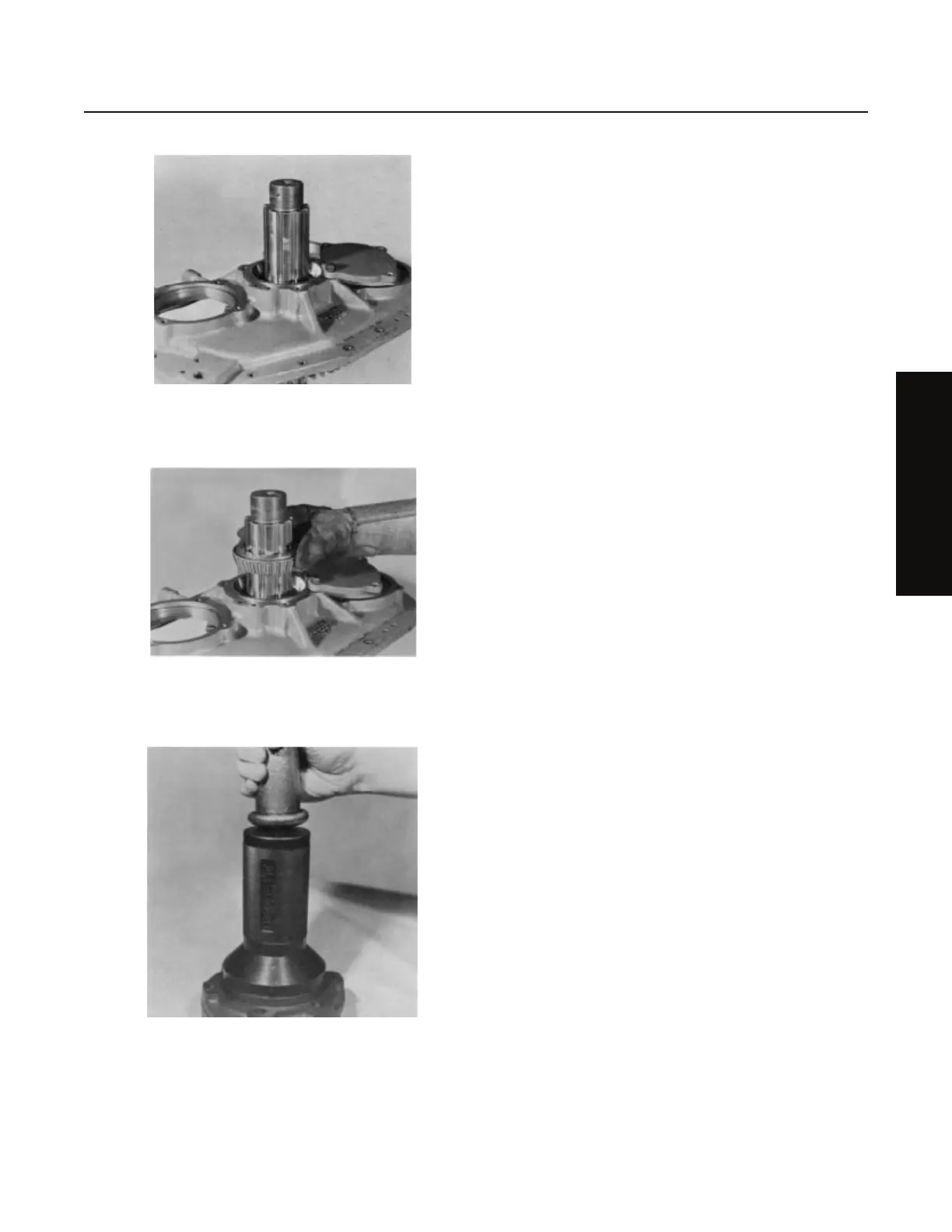

4. Place the rear plate over the output shaft assembly.
Note: If the rear cup lip moves away from the plate, hold the
lip in position against the plate by bolting a counter-
shaft bearing cover on the plate mounting surface so
that an edge of the cover holds the lip of the bearing
cup against the rear plate.
5. Install th e bearing rear cone on the shaft, taper facing down.
Note: Heating of the bearing will facilitate installation. Do not
heat the bearing over 275°F.
6. If previously removed, install the oil seal in the rear bearing
housing flush with the surface, seam of the seal facing into
the housing.
Note: On units equipped with a speedometer driver gear, in-
stall the gear on the shaft prior to installation of the
rear bearing housing.
